• Country
• United States of America (USA)

• Manufacturer / Brand
• Boonton Radio Corp.; Boonton, NJ

• Year
• 1955 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 200490

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6AK5 6C4 6AK5 6AK5 6AU6 6V6GT 5Y3GT 0D3 or VR150 6H6_ballast

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 115; 230 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

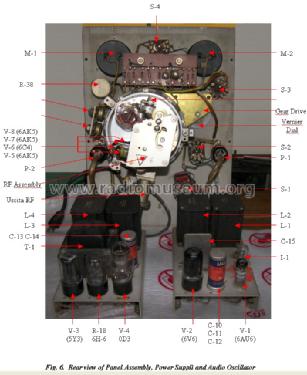

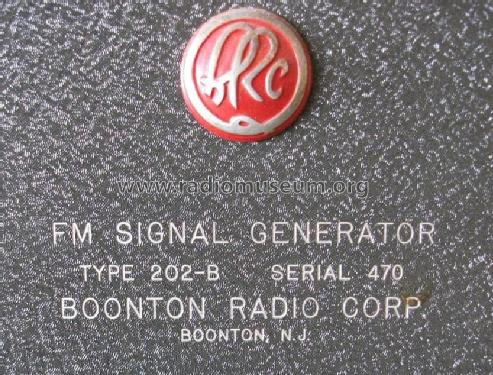

• Model: AM-FM Signal Generator 202B - Boonton Radio Corp.; Boonton,

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 340 x 440 x 280 mm / 13.4 x 17.3 x 11 inch

• Notes
• Boonton AM-FM Signal Generator 202B;
  Coverage 54 - 216 MHz in two ranges, built-in modulation generator.

  Frequenza di lavoro da 54 MHz a 216 MHz
  a copertura continua con segnale modulato.
  Adatto per ricevitori e trasmettitori a Onde Corte, Radio FM e TV.

• Net weight (2.2 lb = 1 kg)
• 18.6 kg / 40 lb 15.5 oz (40.969 lb)

• Author
• Model page created by Luciano Righi. See "Data change" for further contributors.
