• Country
• United States of America (USA)

• Manufacturer / Brand
• Boonton Radio Corp.; Boonton, NJ

• Year
• 1950 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 144621

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6AS7G 6AU6 2C51 12AX7 6V6GT 6AK5 5R4GYA 6X5GT 0A3 6NO30

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Crystal Monitored Signal Gen 211-A - Boonton Radio Corp.; Boonton,

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Dimensions (WHD)
• 482 x 265 x 210 mm / 19 x 10.4 x 8.3 inch

• Notes

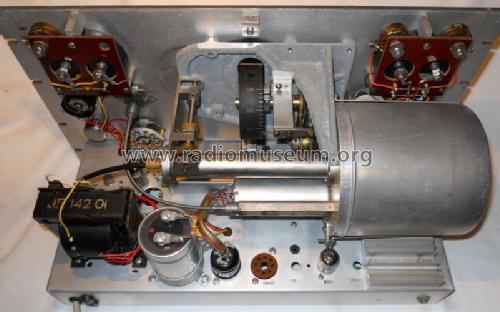

• Boonton Radio 211-A, Crystal Monitored Signal Generator;
  Two instruments.

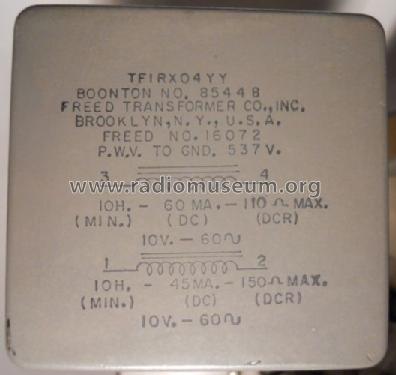

  1) Power supply unit: 7 tubes + 1 relay 6NO30 (time delay)
  2) Signal Generator unit: 9 tubes
  Each tube type listed once only.

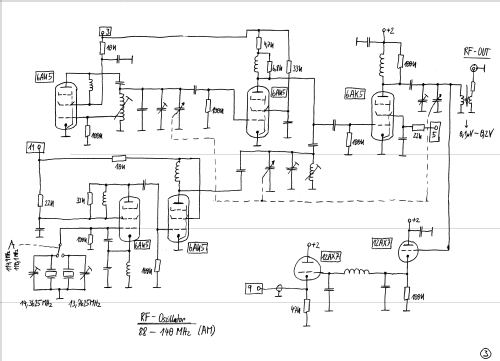

  Oscillator MO tunable from 88 to 140 MHz, two crystal controlled frequencies 110.1 MHz and 114.9 MHz.
  AM-modulation with either internal oscillator 400 / 1000 Hz or external modulation input.
  RF output 0.1 µV up to 0.2 V.
