Modulation Meter 8210
Boonton Electronics Corp. (BEC); Morris Plains, NJ
- Country
- United States of America (USA)
- Manufacturer / Brand
- Boonton Electronics Corp. (BEC); Morris Plains, NJ
- Year
- 1993 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 284813
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage

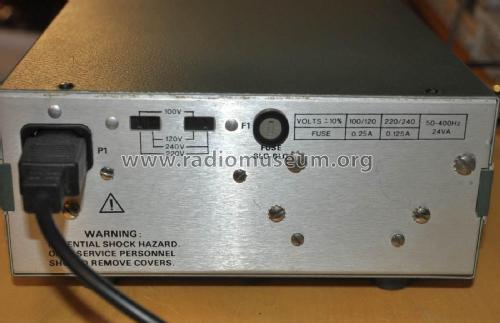

- Alternating Current supply (AC) / 100; 120; 220; 240 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Modulation Meter 8210 - Boonton Electronics Corp. BEC;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 218 x 103 x 278 mm / 8.6 x 4.1 x 10.9 inch
- Notes
-

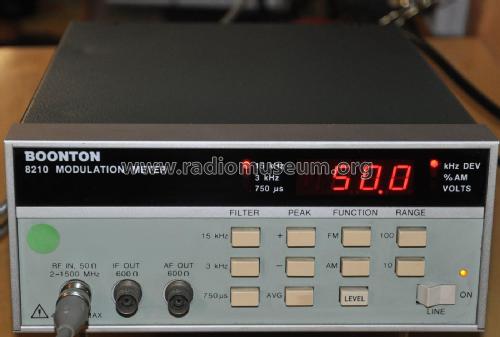

The Model 8210 Modulation Meter is a versatile, solid-state instrument that measures and displays the deviation (up to 150kHz) of frequency -modulated signals or the percentage (up to 100%) of amplitude-modulated signals over a carrier range from 2MHz to 1.5GHz .
The RF input has a sensitivity of:
- 10 mVrms from 2MHz to 520MHz;
- 30mVrms from 520MHz to 1.5GHz.
- Net weight (2.2 lb = 1 kg)
- 3.180 kg / 7 lb 0.1 oz (7.004 lb)
- Mentioned in
- - - Manufacturers Literature (Instruction Manual)
- Author
- Model page created by Antonio Marra. See "Data change" for further contributors.
