Mobile Sprechfunkanlage KF163
Bosch; Deutschland
- Country
- Germany
- Manufacturer / Brand
- Bosch; Deutschland
- Year
- 1979
- Category
- Commercial Transmitter & Receiver (TRX not Amateur)
- Radiomuseum.org ID
- 313306
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Transceiver; ZF/IF 21400/455 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 cm = 1.8 inch
- Material
- Metal case
- from Radiomuseum.org
- Model: Mobile Sprechfunkanlage KF163 - Bosch; Deutschland
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 180 x 45 x 150 mm / 7.1 x 1.8 x 5.9 inch
- Notes
-
Funksprechgerät, vorgesehen für den Einbau in Fahrzeuge.
Frequenzmodulation, max. 32 Kanäle im Bereich 146 bis 174 MHz, Sendeleistung 6 W, NF-Leistung 4 W.

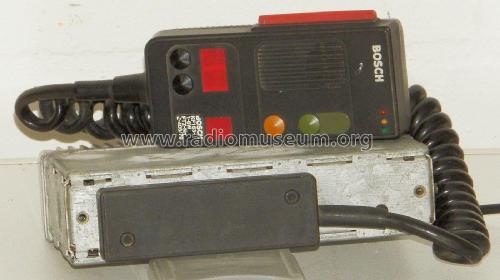

Verschiedene Bedienteile, abhängig von Kanalzahl und Sonderfunktionen (z. B. Selektivruf).

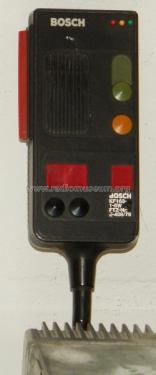

In den Hand-Bedienteilen sind Mikrofon und Lautsprecher verbaut.
- Net weight (2.2 lb = 1 kg)
- 1.260 kg / 2 lb 12.4 oz (2.775 lb)
- Mentioned in
- -- Original-techn. papers. (Technische Information Programm KF82 KF163 KF453)
- Author
- Model page created by Siegfried Droese. See "Data change" for further contributors.
