• Country
• United States of America (USA)

• Manufacturer / Brand
• BOSE Corporation; Framingham (MA),

• Year
• 1998

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 169663

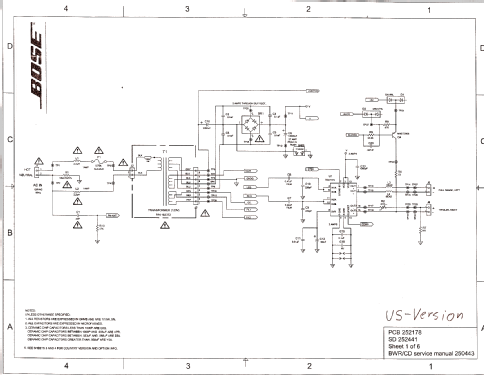

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• CD-Player, -Writer, MD, MOD (audio)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 6.2 cm = 2.4 inch

• Power out
• 25 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

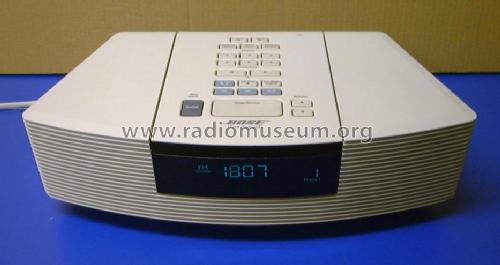

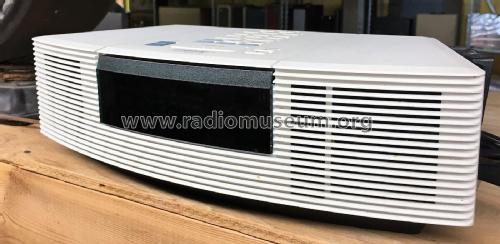

• Model: Wave Radio / CD AWRC2P - BOSE Corporation; Framingham

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 355 x 110 x 215 mm / 14 x 4.3 x 8.5 inch

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Price in first year of sale
• 698.00 Euro

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Joachim Küster. See "Data change" for further contributors.

• Other Models

• Here you find 36 models, 36 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
