• Country
• United States of America (USA)

• Manufacturer / Brand
• Boston Acoustics; Peabody, MA

• Year
• 2002

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 286232

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Recepter Radio - Boston Acoustics; Peabody, MA

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 7.625 x 4.25 x 6.5 inch / 194 x 108 x 165 mm

• Notes

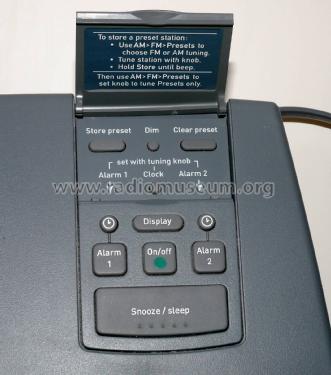

• The Boston Acoustics Recepter Radio is an AM-FM clock radio with 20 station presets.  It has an actively-equalized audio amplifier and ported speaker to provide good bass response at low volume.

  Made in Malaysia.





• Author
• Model page created by David Erali. See "Data change" for further contributors.
