Rhapsody B-401
Bozak, R.T., Co.; Buffalo (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Bozak, R.T., Co.; Buffalo (NY)
- Year
- 1970 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 271716

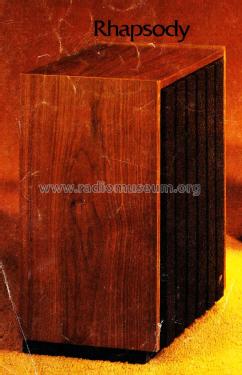

Bozak Brochure
Bozak Brochure
Bozak Brochure
Bozak Brochure
Bozak Brochure
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Rhapsody B-401 - Bozak, R.T., Co.; Buffalo NY
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 18 x 25.5 x 13.25 inch / 457 x 648 x 337 mm
- Notes
-
Bozak 3-Way 4-Driver Loudspeaker System Model Rhapsody B-401.
Vertical Free-standing Unit with a pedestral base and with a sculptured foam grille.
Frequency Response: 40 to 20000Hz
Power Handling: 60Watts , 8 Ohms
Crossover Frequency: 800, 2500Hz - 6dB/Octave
Impedance: 8Ω
Bass: 1 x B-199A 12" cone
Midrange: 1 x B-209B cone
Tweeter: 2 x B-200Y cone
- Net weight (2.2 lb = 1 kg)
- 65 lb (65 lb 0 oz) / 29.510 kg
- Mentioned in
- -- Original prospect or advert (The standard of comparison in compact speakers)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
