- Country
- United States of America (USA)
- Manufacturer / Brand
- Brandes Products Corp.; Newark (NJ) and New York, N.Y.; G.Brandes Inc., New York. N.Y.
- Year
- 1929
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 74059
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- TRF with regeneration; Screengrid 1926-1935
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 100-110; 110-120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case

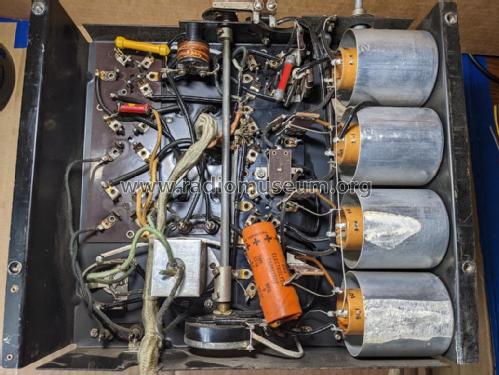

- from Radiomuseum.org
- Model: B-15 - Brandes Products Corp.; Newark
- Shape
- Console with any shape - in general
- Notes
- late production used two 45´tubes for output.
- Price in first year of sale
- 125.00 $
- Source of data
- Radio Collector`s Guide 1921-1932
- Circuit diagram reference
- Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
- Mentioned in
- Collector's Guide to Antique Radios (5th edition) (The Radio CollectorGrinder, 1995)
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 01, 1926-1938
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
