- Country
- Germany
- Manufacturer / Brand
- Brandt (Roland Brandt); Berlin
- Year
- 1948–1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 1069
-
- alternative name: Motorfahrzeug-Fabrik

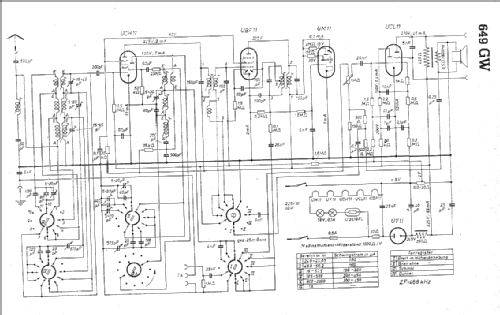

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Number of Transistors
- Semiconductors
- U2410PL
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- AC/DC-set / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
- Material
- Wooden case
- from Radiomuseum.org

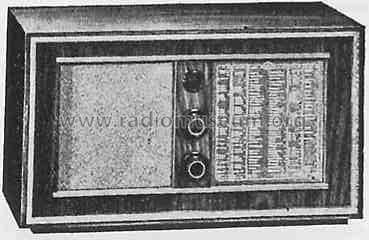

- Model: 649GW - Brandt Roland Brandt; Berlin
- Dimensions (WHD)
- 535 x 310 x 260 mm / 21.1 x 12.2 x 10.2 inch
- Notes
- L-Abstimmung; variable Bandbreite [572] LS=Pd18
- Net weight (2.2 lb = 1 kg)
- 9.5 kg / 20 lb 14.8 oz (20.925 lb)
- Price in first year of sale
- 510.00 DM
- Source of data
- Katalog Weide, 1949/50. / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange-Nowisch
- Mentioned in
- Funkschau (4914)
