• Country
• Germany

• Manufacturer / Brand
• Brandt (Roland Brandt); Berlin

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1051

• • alternative name: Motorfahrzeug-Fabrik

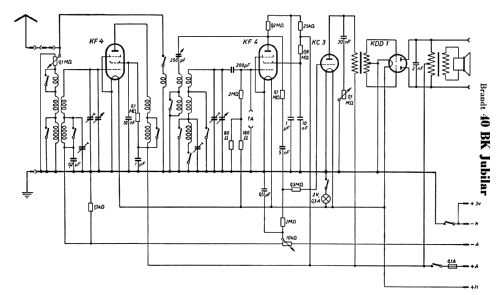

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• KF4 KF4 KC3 KDD1

• Main principle
• TRF with regeneration; 1 Special; 2 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage and/or dry batteries / 2 & 135 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Jubilar 40BK - Brandt Roland Brandt; Berlin

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 475 x 300 x 250 mm / 18.7 x 11.8 x 9.8 inch

• Notes

• Gegentakt-Endstufe, für MW+LW 2 Kreise, für KW 1 Kreis ohne HF-Vorstufe.

• Net weight (2.2 lb = 1 kg)
• 7.6 kg / 16 lb 11.8 oz (16.74 lb)

• Price in first year of sale
• 155.00 RM

• Source of data
• Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung
