• Country
• United States of America (USA)

• Manufacturer / Brand
• Bremer-Tully Mfg. Co.; Chicago (IL)

• Year
• 1927 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 355135

• • Brand: Counterphase

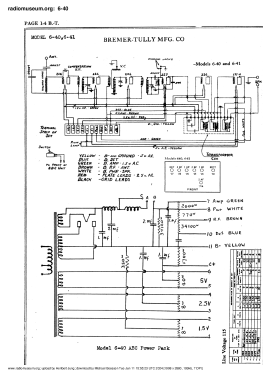

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 226 226 226 226 227 171A 80

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) generic. / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Counterphase 6BR32 - Bremer-Tully Mfg. Co.; Chicago

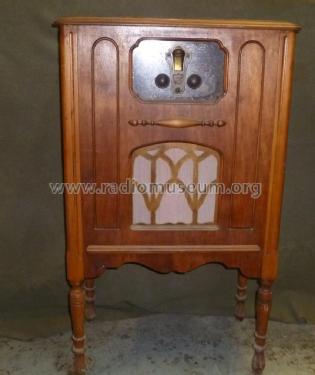

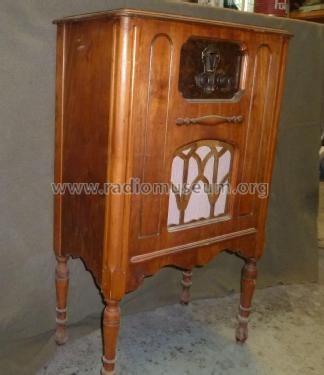

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 23 x 38 x 13 inch / 584 x 965 x 330 mm

• Notes

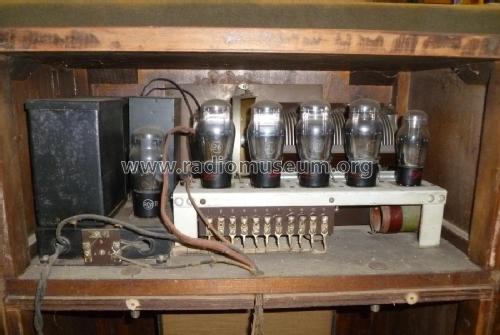

• Chassis appears to be identical to the Bremer-Tully 6-40.

• Author
• Model page created by Michael Boessen. See "Data change" for further contributors.
