SWR Power Tester BRG 22

Bremi Elettronica; Parma

Data
Forum
Pictures
Collections

  • Year
  • 1985 ??
  • Category
  • Amateur Equipment (Other, but not Key)
  • Radiomuseum.org ID
  • 283582

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org

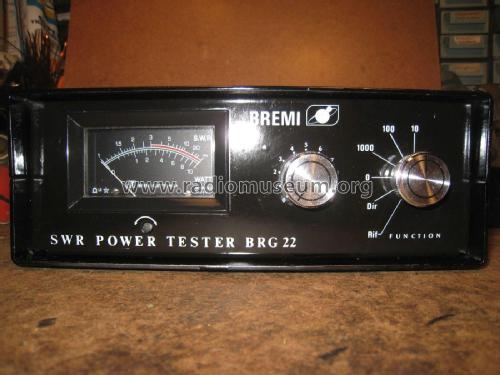

  • Model: SWR Power Tester BRG 22 - Bremi Elettronica; Parma
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 210 x 85 x 110 mm / 8.3 x 3.3 x 4.3 inch
  • Notes

  • Rosmetro - Wattmetro con impedenza ingresso-uscita 52 Ω.
    Rosmetro: Gamma di frequenza 3 ÷ 150 MHz.
    Wattmetro: Gamma di frequenza 3 ÷ 150 MHz. Potenza misurabile fino a 1.000 Watt in 3 gamme: 0 - 10; 0 - 100; 0 - 1.000 Watt.

  • Net weight (2.2 lb = 1 kg)
  • 0.750 kg / 1 lb 10.4 oz (1.652 lb)
  • Mentioned in
  • -- Original prospect or advert (CQ Elettronica, CD edizioni numero 11/131 novembre 1977)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
