• Country
• Great Britain (UK)

• Manufacturer / Brand
• Brenell Engineering Co Ltd.; Clerkenwell, London

• Year
• 1961 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 109568

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EF86 ECC83 EL84 EM87

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit. / 6,3; 300 Volt

• Loudspeaker
• - For headphones or amp.

• Power out
• 3 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

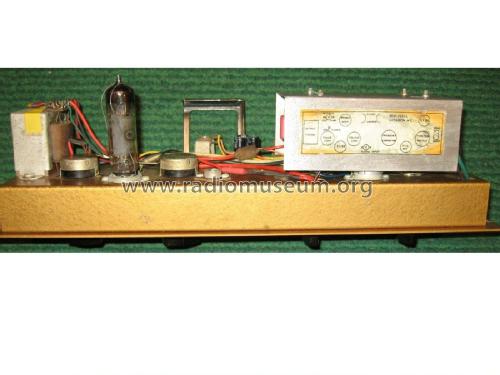

• Model: Record/Playback Amplifier Mark 5 Series 3 - Brenell Engineering Co Ltd.;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 15.5 x 4.5 x 6 inch / 394 x 114 x 152 mm

• Notes
• Record/Playback Amplifier designed for use with Brenell tape recorders, needs optional power supply, gray finish.

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 14 models, 10 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
