Crystalphone Radio
Brey en Co., Larsen de, (H.W.K.), Den Haag
- Country
- Netherlands
- Manufacturer / Brand
- Brey en Co., Larsen de, (H.W.K.), Den Haag
- Year
- 1930
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 274467
- Number of Tubes
- 4
- Main principle
- TRF with regeneration
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Special material, described in the notes.
- from Radiomuseum.org
- Model: Crystalphone Radio - Brey en Co., Larsen de, H.W.K.
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 565 x 245 x 335 mm / 22.2 x 9.6 x 13.2 inch
- Notes
-

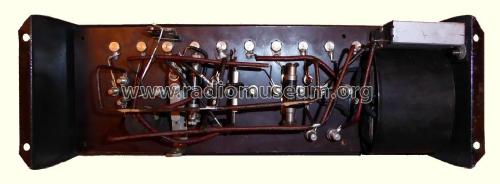

Crystalphone Radio, either manufactured by Larsen de Brey en Co. (brand name a.o. Crystalphone) or by a radio shop in Wilhelminastraat 36, Breda (NL), using the Waldorp Block System (high-frequency block, valve block and power block).
Black painted cabinet with lid and brown marbled "arbolite" front, side and back panels.
The knobs from left to right: primary tuning, volume control in steps, wavelength switch, reaction control, secondary tuning.
An antenna, earth, a gramophone and a loudspeaker can be connected at the back.
The tuning condensers (500 pF) are Indigraphs made by Igranic.
- Net weight (2.2 lb = 1 kg)
- 13 kg / 28 lb 10.1 oz (28.634 lb)
- Mentioned in
- KRO-gids (February 22, 1930)
- Author
- Model page created by John Koster. See "Data change" for further contributors.
