• Country
• Spain

• Manufacturer / Brand
• Brigmton; Bilbao

• Year
• 1995 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 289516

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / AA: 4 x 1,5 / 6 and AAA: 2 x 1,5 back-up Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

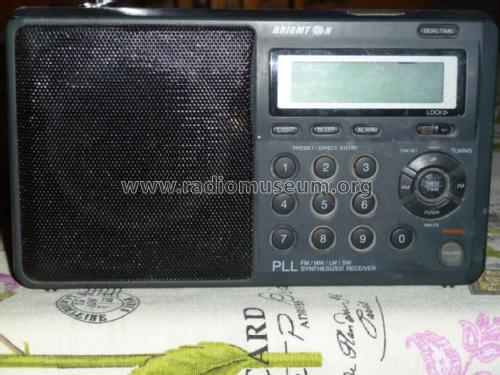

• Model: FM/MW/LW/SW PLL Synthesized Receiver BT-310 - Brigmton; Bilbao

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 215 x 120 x 45 mm / 8.5 x 4.7 x 1.8 inch

• Notes

• Brigmton BT-310

  Modelo con radio reloj despertador.

• Author
• Model page created by Antonio Gamez-Martinez. See "Data change" for further contributors.

• Other Models

• Here you find 15 models, 14 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Brigmton; Bilbao
