• Country
• Italy

• Manufacturer / Brand
• Vega, BP Radio, Brionvega, Brion & Pajetta; Milano, Lissone (MI)

• Year
• 1968 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 141611

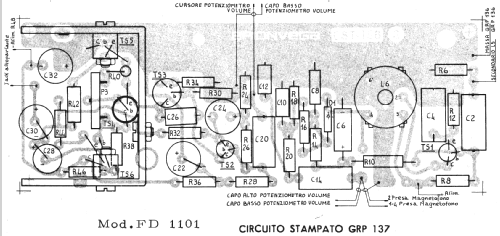

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• BC114 or. BC280 BC114 or. BC280 BC116 or. BC287 OC76 AC141 AC142 AA119 B60C250

• Main principle
• TRF with diode detector

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Long Wave and/or Very Low Frequency (VLF).

• Details
• Wired Wireless Receiver (RF!)

• Power type and voltage
• Alternating Current supply (AC) / 125; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Ricevitore per Filodiffusione FD1101 - Vega, BP Radio, Brionvega,

• Shape
• Tablemodel, with any shape - general.

• Notes

• Brionvega fd1101 Ricevitore per Filodiffusione;
  Wirebroadcasting radio tuner, 6 push-buttons, white cabinet, made in Italy.

  Lo schema indica 2 BC114 in luogo di 2 BC280 ed un BC116 in luogo del BC287 dello schema originale, visibilmente corretti a mano. Sono stati inseriti nell'elenco pur non essendo corrispondenti.
  Presa per registratore ed altoparlante esterno.

• Literature/Schematics (1)
• -- Schematic (Schemario di Apparecchi Radio a Transistori Vol. 6° Antonelliana)

• Literature/Schematics (2)
• -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" marzo 1971.)
