- Country
- Italy
- Manufacturer / Brand
- Vega, BP Radio, Brionvega, Brion & Pajetta; Milano, Lissone (MI)
- Year
- 1963
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 128952
Vista telaio interno (S.Baldi)
Vista pannello posteriore (S.Baldi)
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
- Power out
- 2.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

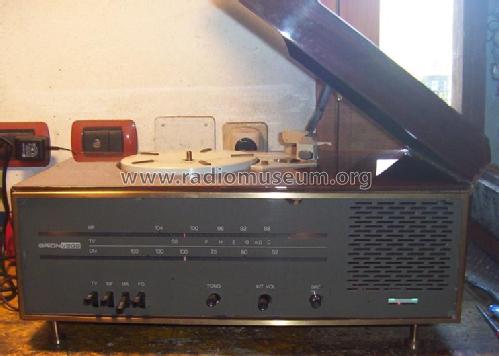

- Model: RR123-FO - Vega, BP Radio, Brionvega,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 500 x 285 x 235 mm / 19.7 x 11.2 x 9.3 inch
- Notes
-
Come modello RR 123, ma con giradischi. Apparecchiatura progettata dall'arch. Bonetto. Gamme d'onda: onde medie e modulazione di frequenza; la radio è inoltre in grado di ricevere anche l'audio dei canali TV in gamma VHF. Giradischi LESA a 4 Velocità.
- Source of data
- Guida Pratica Antique Radio IV (2001)
- Author
- Model page created by Salvatore Baldi † 2017. See "Data change" for further contributors.
