- Country
- Italy
- Manufacturer / Brand
- Vega, BP Radio, Brionvega, Brion & Pajetta; Milano, Lissone (MI)
- Year
- 1968 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 243210
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Dry Batteries / C: 6 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

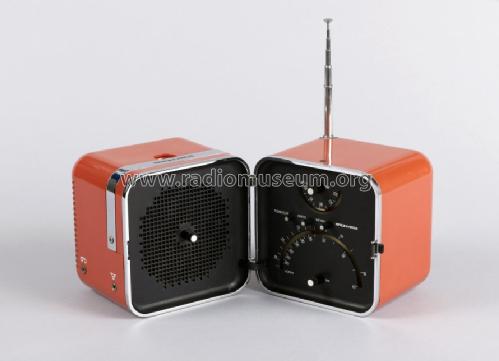

- Model: TS502 - III/3G - Vega, BP Radio, Brionvega,
- Shape
- Design Radio or Novelty / Gadget - fancy or unusual shape.
- Dimensions (WHD)
- 230 x 130 x 130 mm / 9.1 x 5.1 x 5.1 inch
- Notes
-
Lo schema non è ancora disponibile ma dalle foto si può vedere che in questo modello, adatto anche a ricevere le onde lunghe, è caratteristica la presenza del primo tasto a sinistra con la scritta TONO/CAF; caratteristica anche la presa jack per registrare al posto di quella per l'alimentazione esterna.
Per similitudine con il mod. TS502 - III a due gamme, denominiamo questa variante TS502 - III/3G sebbene non vi siano al momento riferimenti ufficiali che mostrino questa denominazione.
Per ulteriori informazioni sulle varie serie, si veda la pag. del TS502 first version e del TS502 V/3G.
- Net weight (2.2 lb = 1 kg)
- 2.2 kg / 4 lb 13.5 oz (4.846 lb)
- Mentioned in
- Antique Radio Magazine - Italy, Club Antique Radio Magazine (n.127, settembre-ottobre 2015, pag. 32-37)
- Author
- Model page created by Aldo Andreani. See "Data change" for further contributors.
