• Country
• Australia

• Manufacturer / Brand
• Genalex, BGE (brand), British General Electric Co. Pty Ltd.; Sydney, NSW.

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 279353

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EK2 6D6 75 EL3 6E5 80

• Main principle
• Superheterodyne (common); ZF/IF 458 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 200-260 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Peel BC430 - Genalex, BGE brand, British

• Shape
• Tablemodel, with any shape - general.

• Notes

• See also Tasma model 430.

• Price in first year of sale
• 19.95 AUS £

• Literature/Schematics (1)

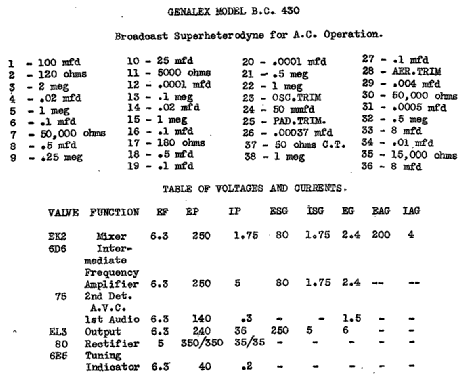

• Australian Official Radio Service Manual AORSM (Volume 1, 1938, Page 103.)

• Author
• Model page created by Gary Cowans. See "Data change" for further contributors.

• Other Models

• Here you find 203 models, 34 with images and 96 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
