• Country
• United States of America (USA)

• Manufacturer / Brand
• Brociner Electronics Lab.; New York

• Year
• 1953

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 128505

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 12AY7 12AU7

• Main principle
• Audio-Amplification; 4 AF stage(s)

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: A100 Pre-Amplifier-Equalizer [12AU7] - Brociner Electronics Lab.; New

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 8.5 x 3.2 x 7.5 inch / 216 x 81 x 191 mm

• Notes

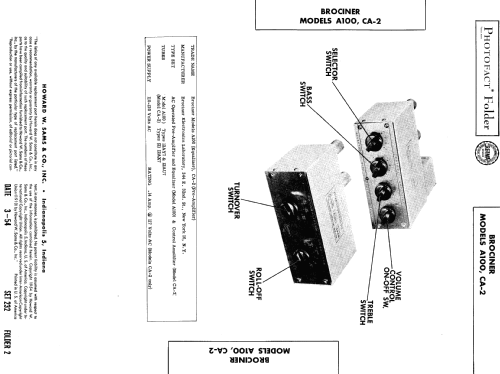

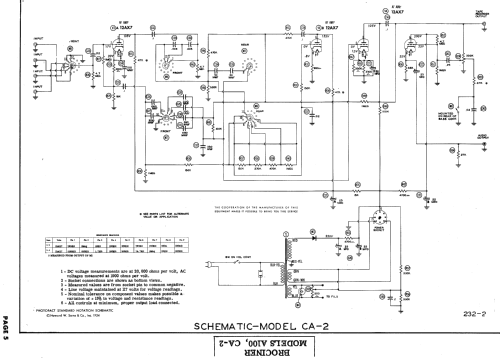

• The Brociner Model A100 and the Pre-Amplifier CA-2 are shown together by SAMS Photofact from 3-54, set 232, folder 2. The A100 is a phono Pre-Amplifier and Equalizer and it works together with the Control Amplifier Model CA-2. The CA-2 has the power supply incorporated for both sets.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)

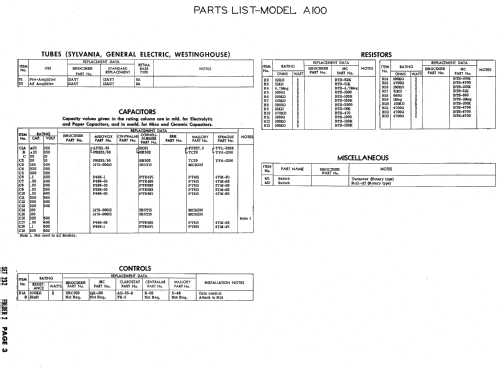

• Photofact Folder, Howard W. SAMS (Date 3-54, set 232, folder 2)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
