H 2

Brown S. G. Ltd.; London

Data

Forum

Pictures

Collections

Country
Great Britain (UK)

Manufacturer / Brand
Brown S. G. Ltd.; London

Year
1922–1925 ?

Category
Loudspeaker, headphone or earphone

Radiomuseum.org ID
104168

Schematics

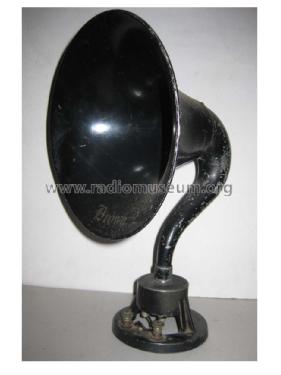

H 2; Brown S. G. Ltd.; (ID = 1387608) Speaker-P — Brown S. G. Ltd.; H 2 (1)

H 2; Brown S. G. Ltd.; (ID = 470127) Speaker-P — Brown S. G. Ltd.; H 2 (1)

H 2; Brown S. G. Ltd.; (ID = 470137) Speaker-P — Brown S. G. Ltd.; H 2 (1)

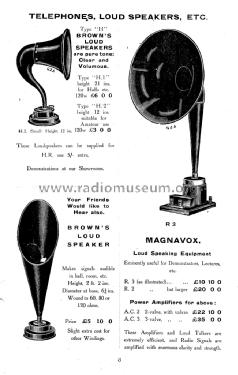

H 2; Brown S. G. Ltd.; (ID = 1536097) Speaker-P — Brown S. G. Ltd.; H 2 (2)

H 2; Brown S. G. Ltd.; (ID = 1591092) Speaker-P — Brown S. G. Ltd.; H 2 (1)
brown

H 2; Brown S. G. Ltd.; (ID = 1591093) Speaker-P — Brown S. G. Ltd.; H 2 (1)
brown

H 2; Brown S. G. Ltd.; (ID = 2066031) Speaker-P — Brown S. G. Ltd.; H 2 (1)
Brown H2 Horn speaker RHS

H 2; Brown S. G. Ltd.; (ID = 2066032) Speaker-P — Brown S. G. Ltd.; H 2 (1)
Brown H2 Horn speaker LHS

H 2; Brown S. G. Ltd.; (ID = 2066033) Speaker-P — Brown S. G. Ltd.; H 2 (1)

H 2; Brown S. G. Ltd.; (ID = 2066034) Speaker-P — Brown S. G. Ltd.; H 2 (1)
Brown H2 Horn speaker driver underside

H 2; Brown S. G. Ltd.; (ID = 2066035) Speaker-P — Brown S. G. Ltd.; H 2 (1)
Brown H2 Horn speaker driver dismantled

H 2; Brown S. G. Ltd.; (ID = 2282613) Speaker-P — Brown S. G. Ltd.; H 2 (1)
S.G.Brown H2 horn speaker Front view

Technical Specifications

Wave bands
- without

Power type and voltage
No Power needed

Loudspeaker
Horn / Ø 7.5 inch = 19.1 cm

Material
Metal case

from Radiomuseum.org
Model: H 2 - Brown S. G. Ltd.; London

Shape
Miscellaneous shapes - described under notes.

Dimensions (WHD)
7.5 x 12 x 0 inch / 191 x 305 x 0 mm

Notes
Black-enamelled metal horn loud-speaker.

Price in first year of sale
3.00 £

Mentioned in
Radio! Radio! (fig.819)

Literature/Schematics (3)
Le Guide du Collectionneur TSF Biraud/Foster, Vol. II (page 418)

Other Models
Here you find 54 models, 44 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
