• Country
• Japan

• Manufacturer / Brand
• CBC Charles Brown (Browni, Magnon, Belair); Tokyo

• Year
• 1973 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 197532

• Number of Transistors
• 1

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

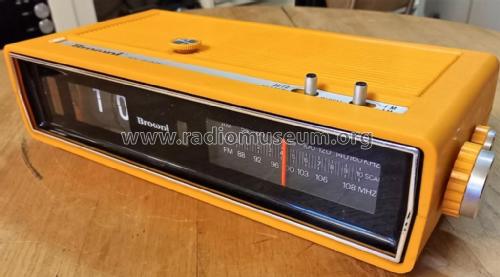

• Model: Browni Jet-Clock RD-2520 - CBC Charles Brown Browni,

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 310 x 80 x 145 mm / 12.2 x 3.1 x 5.7 inch

• Notes
• AM: 540 ~ 1600 kHz. FM: 88 ~ 108 MHz. Sleep timer.

• Author
• Model page created by Philip Obetsanov. See "Data change" for further contributors.

• Other Models

• Here you find 81 models, 74 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
