• Country
• Japan

• Manufacturer / Brand
• CBC Charles Brown (Browni, Magnon, Belair); Tokyo

• Year
• 1963/1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 189708

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 cm = 0.9 inch

• Power out
• 0.16 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Browni Six Transistor Solid State VC-106 Ch= YC-6 - CBC Charles Brown Browni,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 66 x 110 x 30 mm / 2.6 x 4.3 x 1.2 inch

• Notes

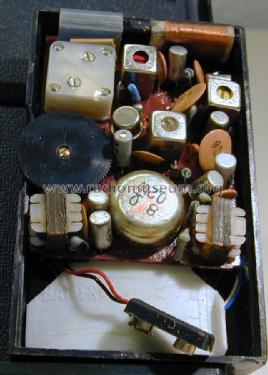

• Browni VC-106 Full transistorized pocket radio with earphone jack. The carrying strap is here missing, weight boxed.

• Net weight (2.2 lb = 1 kg)
• 0.210 kg / 0 lb 7.4 oz (0.463 lb)

• Author
• Model page created by Eckhard Wegner. See "Data change" for further contributors.
