- Country
- United States of America (USA)
- Manufacturer / Brand
- Browning Laboratories Inc.; USA
- Year
- 1955/1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 98501
SAMS
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 10700 kHz
- Tuned circuits
- 11 FM circuit(s)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: L-300 - Browning Laboratories Inc.;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 9 x 4.7 x 8 inch / 229 x 119 x 203 mm
- Notes
-
Browning model L-300 is an AC operated FM superheterodyne tuner for custom installation.
- Price in first year of sale
- 88.00 $
- External source of data
- Allied Radio Catalog Nº 150, 1956
- Literature/Schematics (1)

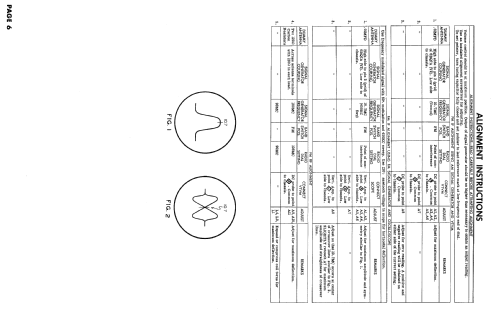

- Photofact Folder, Howard W. SAMS (Set 307 Folder 5 dated 2-56)
- Author
- Model page created by Vitor Oliveira. See "Data change" for further contributors.
