• Country
• Denmark

• Manufacturer / Brand
• Brüel & Kjær; Nærum

• Year
• 1959 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 114166

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECC83 ECF82 EZ90 150C2

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 100-240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

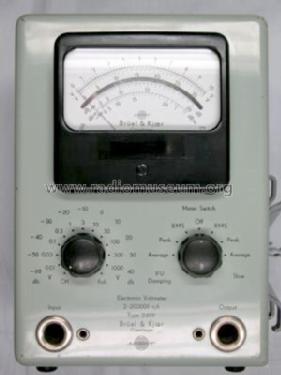

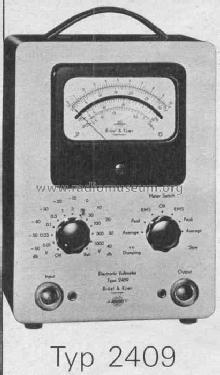

• Model: Electronic Voltmeter 2409 - Brüel & Kjær; Nærum

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 180 x 260 x 130 mm / 7.1 x 10.2 x 5.1 inch

• Notes
• 0,01 - 1000 volts AC in eleven ranges in a frequency range from 20 Hz to 200 kHz; RMS/Peak/Average/VU/Slow
  Decibel: -60 ... +40 dB

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Price in first year of sale
• 83.00 GBP

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Klaus Ortwein. See "Data change" for further contributors.
