• Country
• United States of America (USA)

• Manufacturer / Brand
• Brunswick-Balke-Collender Co.

• Year
• 1931

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 34728

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 51 24 24 51 24 47 47 80 27

• Main principle
• Superhet with RF-stage; ZF/IF 175 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105-115; 115-120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

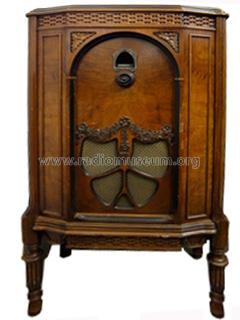

• Model: 17 - Brunswick-Balke-Collender Co.

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• AF output tubes are in parallel

• Price in first year of sale
• 149.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 3 = 1933 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965
