5KR Ch = RCA Radiola 18
Brunswick-Balke-Collender Co.
- Country
- United States of America (USA)
- Manufacturer / Brand
- Brunswick-Balke-Collender Co.
- Year
- 1928
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 34757

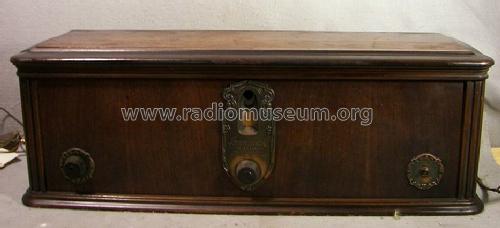

Ebay Item number: 370550983899
Ebay Item number: 370550983899
Ebay Item number: 370550983899
Ebay Item number: 370550983899
Ebay Item number: 370550983899
Ebay Item number: 370550983899
Ebay Item number: 370550983899
Shown with the Brunswick Model A speaker.

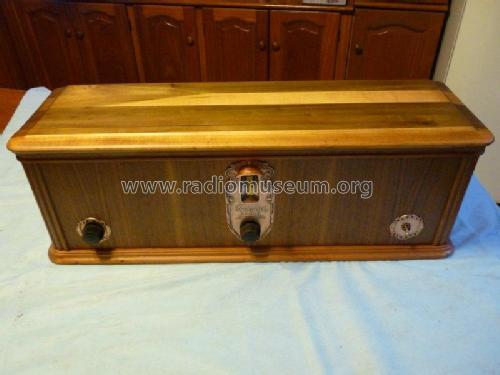

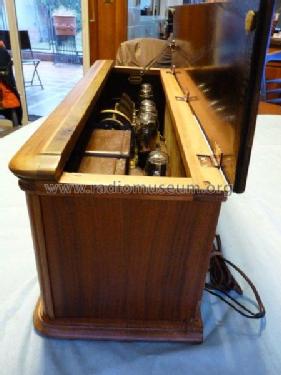

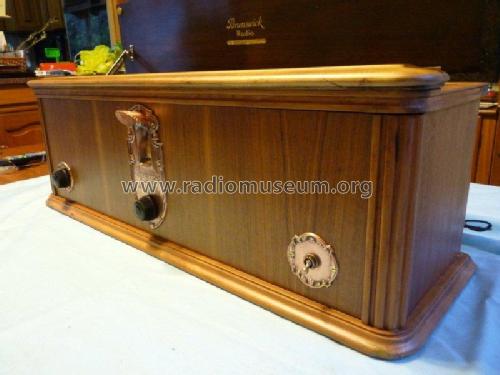

eigene Sammlung
eigene Sammlung
eigene Sammlung
eigene Sammlung
eigene Sammlung
eigene Sammlung

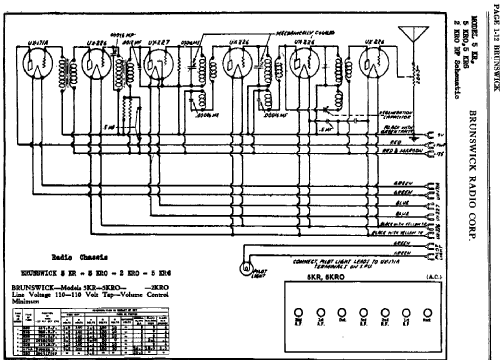

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- TRF without regeneration
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 105; 125 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: 5KR Ch = RCA Radiola 18 - Brunswick-Balke-Collender Co.
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 27.5 x 9 x 8 inch / 699 x 229 x 203 mm
- Notes
-

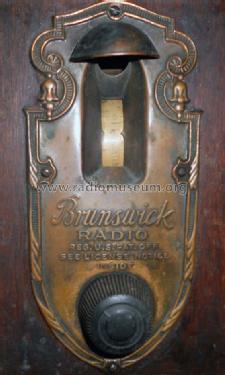

One dial (primary tuning control knob).
Frequently paired with Brunswick Model A external speaker as shown.
- Net weight (2.2 lb = 1 kg)
- 45 lb (45 lb 0 oz) / 20.430 kg
- Price in first year of sale
- 115.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Circuit diagram reference
- Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
- Other Models
-
Here you find 101 models, 33 with images and 67 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Brunswick-Balke-Collender Co.
Collections
The model 5KR is part of the collections of the following members.
Forum contributions about this model: Brunswick-Balke-: 5KR Ch = RCA Radiola 18
Threads: 1 | Posts: 1
The following information is from my own 1928 Brunswick model 5KR Radio + Speaker. It looks like a RCA Radiola 17 or 18 in apperance & layout but has a much lighter finish to the wood. It contains 4 # 26 tubes, 1 # 27 tube, 1 # 71A tube, & a 80 Rectifier tube.
The size of this radio is: 27 inches wide by 9 1/2 inches tall by 8 3/8 inches deep.
My speaker which also has clearly written on it "Brunswick"(written on back)
has dimensions of 12 inches tall by 15 inches wide by 6 1/4 inches deep.
I intend to add info to this model page with 2 pictures of the radio & 2 pictures of the speaker.
The size of this radio is: 27 inches wide by 9 1/2 inches tall by 8 3/8 inches deep.
My speaker which also has clearly written on it "Brunswick"(written on back)
has dimensions of 12 inches tall by 15 inches wide by 6 1/4 inches deep.
I intend to add info to this model page with 2 pictures of the radio & 2 pictures of the speaker.
Marvin J. Glassman, 28.Oct.05
