Every Home 39EH
British Brunswick Ltd., & Brunswick Ltd.; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- British Brunswick Ltd., & Brunswick Ltd.; London
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 158820

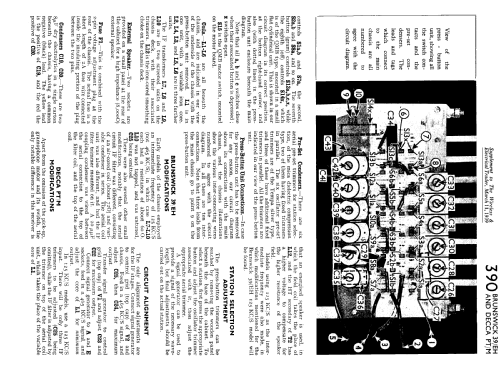

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Every Home 39EH - British Brunswick Ltd., &
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 16.5 x 12.75 x 11.75 inch / 419 x 324 x 298 mm
- Notes
- Table radiogram with push buttons for six pre-set radio stations. No manual tuning. Collaro AC37 turntable. Some early production sets have an IF of 125Khz. A similar chassis is fitted to the Decca PT/M table radio.
- Price in first year of sale
- 12.00 GBP
- Source of data
- -- Schematic
- Literature/Schematics (1)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (390)
- Literature/Schematics (2)
- Broadcaster November 1938
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
