- Country
- United States of America (USA)
- Manufacturer / Brand
- Brunswick Div. Mersman Bros.
- Year
- 1952 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 354791
-
- alternative name: Mershman Bros. Corp

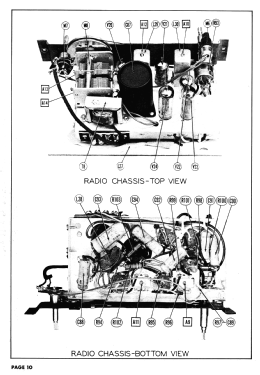

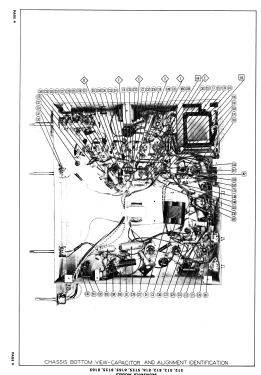

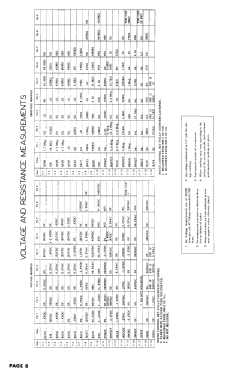

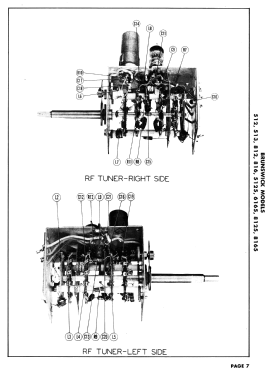

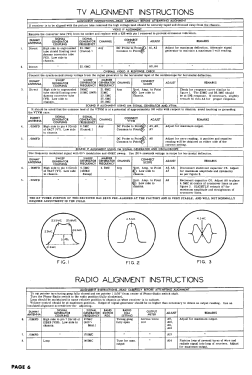

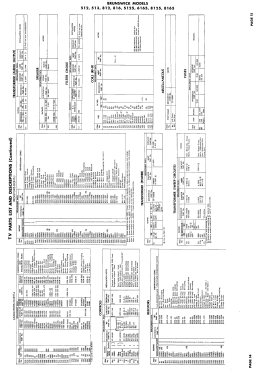

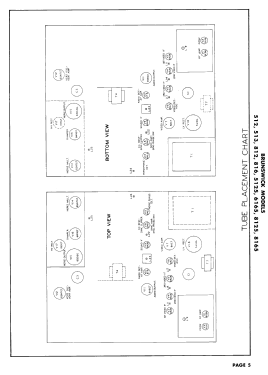

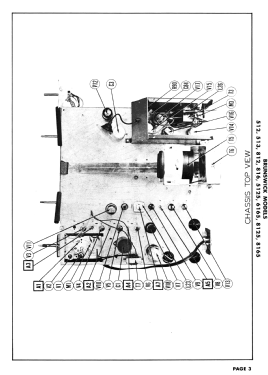

Picture from service manual.

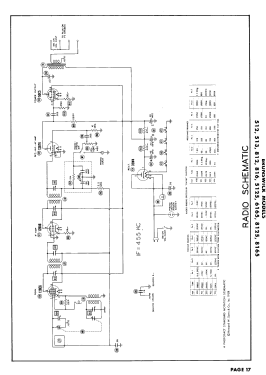

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 24
- Valves / Tubes
- 6CB6 or 6AG5 6J6 6AU6 6AU6 6AU6 6AL5 6AC7 12AU7 6AU6 6T8 6V6GT 6SN7GT 6AL5 6SN7GT 6BG6G 6W4GT 1B3GT 5U4G 12BE6 12BA6 12AT6 50C5 35W4 16JP4A or 12LP4A or 10BP4 or 16LP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 8125 - Brunswick Div. Mersman Bros.
- Shape
- Console with any shape - in general
- Notes
-
Brunswick model 8125 is a b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with a TV-radio-phono combination, VHF-tuner T-10003 and picture tube 16JP4A or 12LP4A or 10BP4 or 16LP4A.
- Literature/Schematics (1)

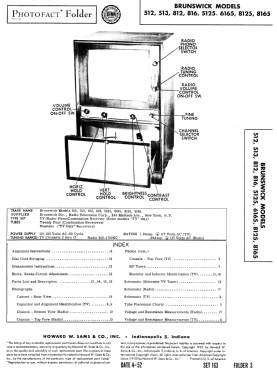

- Photofact Folder, Howard W. SAMS (Set 163, folder 3, dated 4-52)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
