- Country
- United States of America (USA)
- Manufacturer / Brand
- Brunswick Radio&Television, Inc
- Year
- 1942 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 34698
-
- alternative name: Radio & Telev.Prod.Co.

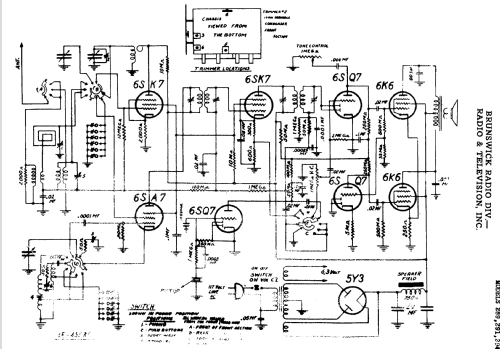

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 291 - Brunswick Radio&Television,
- Notes
- BC (535-1650 kHz) and SW (5.5-18.5 MHz) bands. 6SK7 1st detector/mixer with 6SA7 as oscillator. BC band with 6 pre-set station buttons. Push-pull audio amplifier.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 13 = 1942 and before
- Mentioned in
- Rider's 13-9, 13-10
