• Country
• United States of America (USA)

• Manufacturer / Brand
• Brunswick Radio&Television, Inc

• Year
• 1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 34703

• • alternative name: Radio & Telev.Prod.Co.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6SG7 6AB7 6SA7 6SG7 6G5 or 6U5 6SG7 6SJ7 6SJ7 6H6 6J5 6Q7 6SQ7 6SQ7 6K6GT 6K6GT 5Z3

• Main principle
• Superhet with RF-stage; ZF/IF 456/3200 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

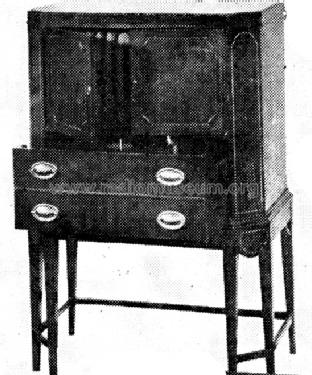

• Model: 299FM - Brunswick Radio&Television,

• Shape
• Console, Highboy (legs > 50 %).

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 14 = 1944 = before 1943

• Mentioned in
• Radio Retailing (Radio & Television R.) (October 1941 page 17.)
