C-3300 "Darby"
Brunswick Radio&Television, Inc
- Country
- United States of America (USA)
- Manufacturer / Brand
- Brunswick Radio&Television, Inc
- Year
- 1947 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 134246
-
- alternative name: Radio & Telev.Prod.Co.

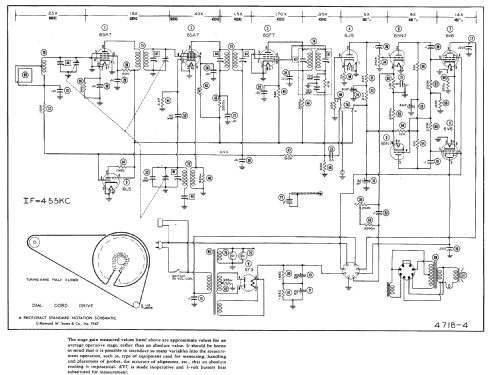

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: C-3300 "Darby" - Brunswick Radio&Television,
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- 6" x 9" Elliptical Speaker. Trade Name: Brunswick
Manufacturer: Radio & Television Inc.
- Literature/Schematics (1)

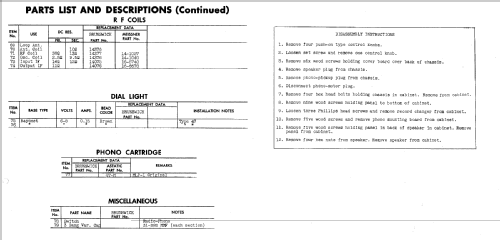

- Photofact Folder, Howard W. SAMS (Dat 11-47, set 28, folder 4718-4)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
