T-4000 "Buckingham"
Brunswick Radio&Television, Inc
- Country
- United States of America (USA)
- Manufacturer / Brand
- Brunswick Radio&Television, Inc
- Year
- 1947/1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 34721
-
- alternative name: Radio & Telev.Prod.Co.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: T-4000 "Buckingham" - Brunswick Radio&Television,
- Shape
- Console with any shape - in general
- Notes

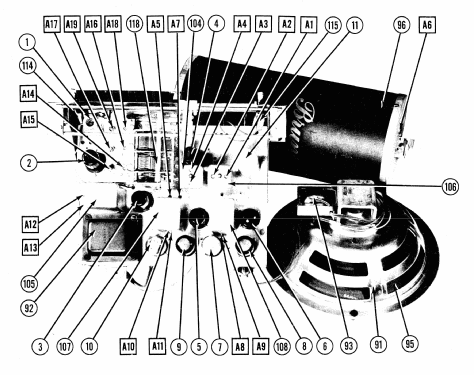

- The speaker of radio model Brunswick Buckingham T-4000 from Radio & Television Inc. is diameter 11-3/4" PM, Jensen part ST-101t Mod. P12-T. The AC operated combination phono-radio for AM and FM has a self contained loop antenna. According to SAMS the different Brunswick models Buckingham T-4000, Buckingham T-4000 1/2 and Plymouth D-6876 have the same chassis but we don't know which case comes to which model. Rider's adds SF-6810.
- External source of data
- Ernst Erb

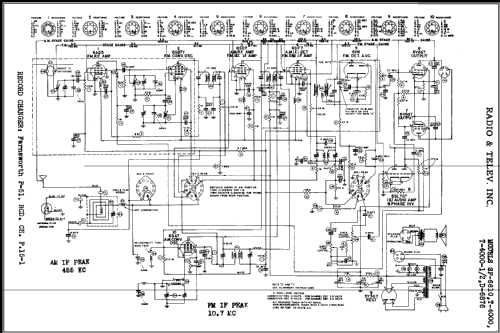

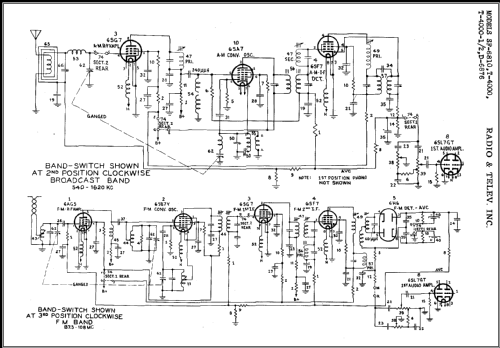

- Circuit diagram reference
- Rider's Perpetual, Volume 16 = ca. 1948 and before
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 12-47, Set 29, Folder 4719-5)
