• Country
• Great Britain (UK)

• Manufacturer / Brand
• BSR (Monarch); Great Britain

• Year
• 1963 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 203458

• • Brand: Birmingham Sound Reproducers

• Number of Tubes
• 2

• Valves / Tubes
• ECC83 ECL86

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details

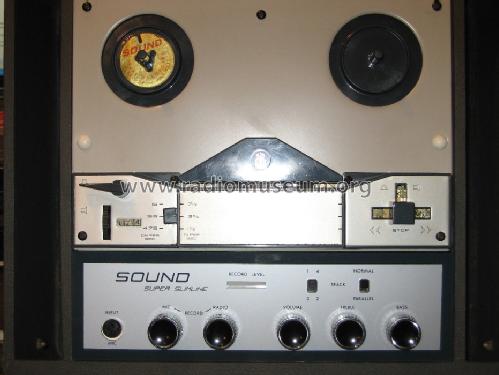

• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 210; 230; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Sound - BSR Monarch; Great Britain

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 440 x 200 x 400 mm / 17.3 x 7.9 x 15.7 inch

• Notes
• Speeds: 7 1/2, 3 3/4 and 1 7/8 ips, 2 track stereo;

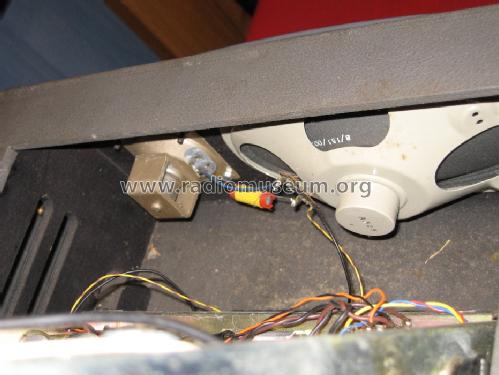

  Incorporates two speakers, one elliptic and one tweeter.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Jose Mayoral-Diaz. See "Data change" for further contributors.
