• Country
• Hungary

• Manufacturer / Brand
• Budapesti Rádiótechnikai Gyár (BRG)

• Year
• 1968/1969

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 107412

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• EM80

• Number of Transistors
• 7

• Semiconductors
• AC125 AC126 AC126 AC125 AC128 AC128 AC128

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.7 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

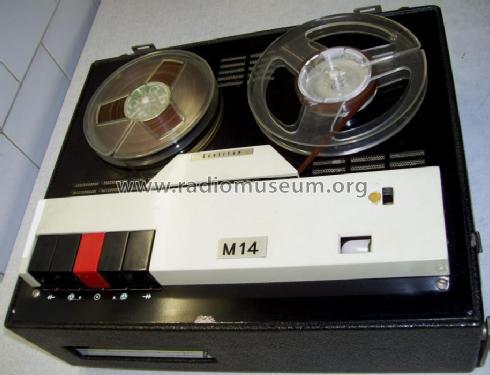

• Model: QUALITON M14 - Budapesti Rádiótechnikai Gyár

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 360 x 140 x 300 mm / 14.2 x 5.5 x 11.8 inch

• Notes
• Band-Geschwindigkeit 9,53cm/s. Spulen-Ø 15 cm. Mikrofon-, Radio- und Plattenspielereingang. EM80 als Aussteuerungsanzeige.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Price in first year of sale
• 3,800.00 HUF

• Source of data
• Radio es Televizio Vevö keszülekek 1967-69

• Author
• Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
