• Country
• Germany

• Manufacturer / Brand
• Budich GmbH, Georg; Berlin-Charlottenburg

• Year
• 1934 ?

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 230168

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• RES094 RE084 RE084 RES174

• Main principle
• TRF with regeneration

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

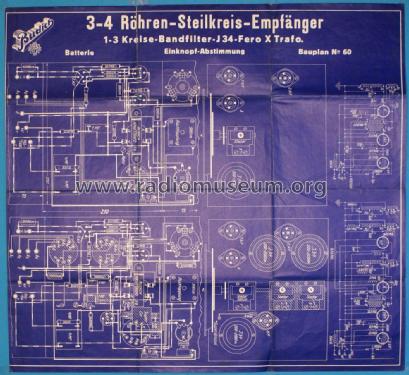

• Model: Bauplan 60 - Budich GmbH, Georg; Berlin-

• Shape
• Chassis only or for «building in»

• Notes

• Dreikreis-Empfänger, Audion mit HF-Bandfilter-Vorstufe mit den neuen Fero-X-Spulen, für Batteriebetrieb.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.

• Other Models

• Here you find 57 models, 46 with images and 19 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
