• Country
• Germany

• Manufacturer / Brand
• Budich GmbH, Georg; Berlin-Charlottenburg

• Year
• 1935 ??

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 336196

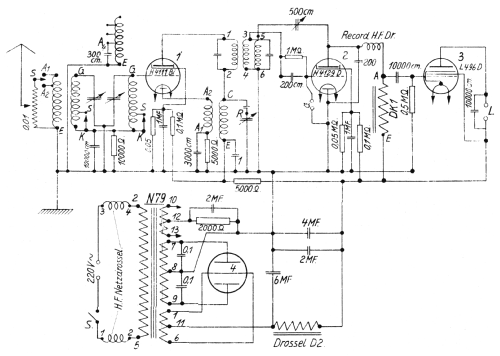

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes
• H4111D or RENS1264 H4129D or RENS1294 L496D or RES964 GL4/1D

• Main principle
• Superhet, IF regeneration; ZF/IF 130 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Various materials

• from Radiomuseum.org
• Model: Bauplan 68 - Budich GmbH, Georg; Berlin-

• Shape
• Chassis only or for «building in»

• Notes

• 3-Röhren-5-Kreis-Fernempfänger mit Bandfilter-Eingang unter Verwendung der Super-X-Spulen. ZF-Rückkopplung.

  Der Bauplan gibt in der Beschreibung 6 Kreise an.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
