Phonograph Oscillator WO-6A
Bud Radio Inc.; Cleveland (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Bud Radio Inc.; Cleveland (OH)
- Year
- 1965 ??
- Category
- Miscellaneous (Other, Various) - see notes
- Radiomuseum.org ID
- 204369
- Number of Tubes
- 2
- Main principle
- Transmitter; none
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 120 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Phonograph Oscillator WO-6A - Bud Radio Inc.; Cleveland OH
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 3 x 5.25 x 2.25 inch / 76 x 133 x 57 mm
- Notes

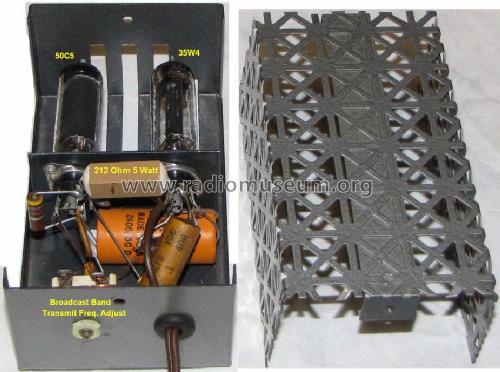

- Power input: 120 Volts AC or DC. No transformer. Audio input to screw terminals labeled "pickup" and "shield"; signal level designed to be connected directly to a crystal phono pickup. Output: Broadcast band rf to screw terminal labeled "antenna". Frequency adjusted using a variable capacitor (external screw) which has magnet wire wrapped around it to form a non-ferrous core inductor. Steel case isolated from power line, but audio input, shield and antenna output are not isolated. Given as a gift to me circa 1965.
- Net weight (2.2 lb = 1 kg)
- 0.75 lb (0 lb 12 oz) / 0.341 kg
- Source of data
- - - Data from my own collection
- Author
- Model page created by Gary Brandenburger. See "Data change" for further contributors.
