Clock Radio 100

Bulova Watch Corp.; Woodside (NY)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Bulova Watch Corp.; Woodside (NY)

Year
1957 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
83931

Schematics

Clock Radio 100; Bulova Watch Corp.; (ID = 2438469) Radio — Bulova Watch Corp.; Clock Radio 100 (3)

Clock Radio 100; Bulova Watch Corp.; (ID = 2438470) Radio — Bulova Watch Corp.; Clock Radio 100 (3)

Clock Radio 100; Bulova Watch Corp.; (ID = 2438471) Radio — Bulova Watch Corp.; Clock Radio 100 (3)

Clock Radio 100; Bulova Watch Corp.; (ID = 2438472) Radio — Bulova Watch Corp.; Clock Radio 100 (3)

Clock Radio 100; Bulova Watch Corp.; (ID = 2438474) Radio — Bulova Watch Corp.; Clock Radio 100 (3)

Clock Radio 100; Bulova Watch Corp.; (ID = 2438475) Radio — Bulova Watch Corp.; Clock Radio 100 (3)

Clock Radio 100; Bulova Watch Corp.; (ID = 137114) Radio — Bulova Watch Corp.; Clock Radio 100 (3)

Clock Radio 100; Bulova Watch Corp.; (ID = 1493794) Radio — Bulova Watch Corp.; Clock Radio 100 (3)

Clock Radio 100; Bulova Watch Corp.; (ID = 1493792) Radio — Bulova Watch Corp.; Clock Radio 100 (3)

Clock Radio 100; Bulova Watch Corp.; (ID = 1493793) Radio — Bulova Watch Corp.; Clock Radio 100 (3)

Clock Radio 100; Bulova Watch Corp.; (ID = 1493791) Radio — Bulova Watch Corp.; Clock Radio 100 (3)

Clock Radio 100; Bulova Watch Corp.; (ID = 612642) Radio — Bulova Watch Corp.; Clock Radio 100 (1)
my 1957 bulova clock radio model 100

Clock Radio 100; Bulova Watch Corp.; (ID = 329630) Radio — Bulova Watch Corp.; Clock Radio 100 (2)
Ebay Nr. 160124651386 Bild bearbeitet.

Clock Radio 100; Bulova Watch Corp.; (ID = 351760) Radio — Bulova Watch Corp.; Clock Radio 100 (2)
Ebay Nr. 190126834942 Bild bearbeitet.

Clock Radio 100; Bulova Watch Corp.; (ID = 351761) Radio — Bulova Watch Corp.; Clock Radio 100 (2)
Ebay Nr. 190128770357 Bild bearbeitet.

Clock Radio 100; Bulova Watch Corp.; (ID = 329632) Radio — Bulova Watch Corp.; Clock Radio 100 (2)
Ebay Nr. 160124651386 Bild bearbeitet.

Clock Radio 100; Bulova Watch Corp.; (ID = 329633) Radio — Bulova Watch Corp.; Clock Radio 100 (2)
Ebay Nr. 160124651386 Bild bearbeitet.

Clock Radio 100; Bulova Watch Corp.; (ID = 351762) Radio — Bulova Watch Corp.; Clock Radio 100 (2)
Ebay Nr. 190134141157 Bild bearbeitet.

Clock Radio 100; Bulova Watch Corp.; (ID = 1395864) Radio — Bulova Watch Corp.; Clock Radio 100 (2)

Clock Radio 100; Bulova Watch Corp.; (ID = 1916813) Radio — Bulova Watch Corp.; Clock Radio 100 (2)

Clock Radio 100; Bulova Watch Corp.; (ID = 1916814) Radio — Bulova Watch Corp.; Clock Radio 100 (2)

Clock Radio 100; Bulova Watch Corp.; (ID = 1916815) Radio — Bulova Watch Corp.; Clock Radio 100 (2)

Clock Radio 100; Bulova Watch Corp.; (ID = 1916816) Radio — Bulova Watch Corp.; Clock Radio 100 (2)

Clock Radio 100; Bulova Watch Corp.; (ID = 1916817) Radio — Bulova Watch Corp.; Clock Radio 100 (2)

Clock Radio 100; Bulova Watch Corp.; (ID = 1916818) Radio — Bulova Watch Corp.; Clock Radio 100 (2)

Clock Radio 100; Bulova Watch Corp.; (ID = 2053542) Radio — Bulova Watch Corp.; Clock Radio 100 (1)
One yellow knob is missing

Clock Radio 100; Bulova Watch Corp.; (ID = 2438468) Radio — Bulova Watch Corp.; Clock Radio 100 (2)
Picture from service manual.

Clock Radio 100; Bulova Watch Corp.; (ID = 2822235) Radio — Bulova Watch Corp.; Clock Radio 100 (2)
eBay-Artikelnummer:195278250134

Clock Radio 100; Bulova Watch Corp.; (ID = 2822236) Radio — Bulova Watch Corp.; Clock Radio 100 (2)
eBay-Artikelnummer:195278250134

Clock Radio 100; Bulova Watch Corp.; (ID = 2822237) Radio — Bulova Watch Corp.; Clock Radio 100 (2)
eBay-Artikelnummer:195278250134

Clock Radio 100; Bulova Watch Corp.; (ID = 2822238) Radio — Bulova Watch Corp.; Clock Radio 100 (2)
eBay-Artikelnummer:195278250134

Clock Radio 100; Bulova Watch Corp.; (ID = 2822239) Radio — Bulova Watch Corp.; Clock Radio 100 (2)
eBay-Artikelnummer:195278250134

Clock Radio 100; Bulova Watch Corp.; (ID = 2855557) Radio — Bulova Watch Corp.; Clock Radio 100 (2)
eBay item number:354478325829

Clock Radio 100; Bulova Watch Corp.; (ID = 2855558) Radio — Bulova Watch Corp.; Clock Radio 100 (2)
eBay item number:354478325829

Clock Radio 100; Bulova Watch Corp.; (ID = 2855559) Radio — Bulova Watch Corp.; Clock Radio 100 (2)
eBay item number:354478325829

Clock Radio 100; Bulova Watch Corp.; (ID = 2855560) Radio — Bulova Watch Corp.; Clock Radio 100 (2)
eBay item number:354478325829

Clock Radio 100; Bulova Watch Corp.; (ID = 2855561) Radio — Bulova Watch Corp.; Clock Radio 100 (2)
eBay item number:354478325829

Clock Radio 100; Bulova Watch Corp.; (ID = 2993795) Radio — Bulova Watch Corp.; Clock Radio 100 (2)
eBay item number:186202498416

Clock Radio 100; Bulova Watch Corp.; (ID = 2993797) Radio — Bulova Watch Corp.; Clock Radio 100 (2)
eBay item number:186202498416

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
12BE6 12BA6 12AV6 50C5 35W4

Main principle
Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

Tuned circuits
6 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Clock Radio 100 - Bulova Watch Corp.; Woodside

Shape
Tablemodel with Clock ((Alarm-) Clock Radio).

Dimensions (WHD)
12.5 x 6 x 5.75 inch / 318 x 152 x 146 mm

Notes
Bulova model 100 is an AC operated AM receiver with electrick clock.
Colors: aqua; black; pink; white.
See also Bulova Clock Radio Model A.

Circuit diagram reference
Beitman Radio Diagrams Vol. 18, 1958

Literature/Schematics (1)

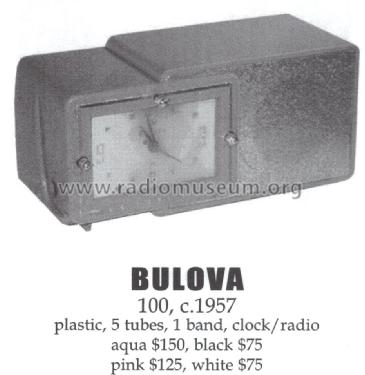

Table Top Radios Vol. 1 Stein 98 (page 46.)

Literature/Schematics (2)

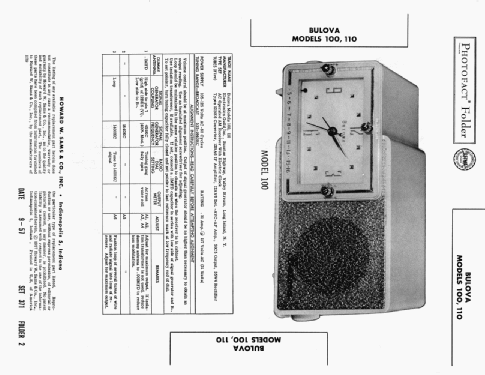

Photofact Folder, Howard W. SAMS (Set 371 Folder 2 dated 9-57)

Author
Model page created by Egon Penker. See "Data change" for further contributors.
