• Country
• United States of America (USA)

• Manufacturer / Brand
• Bulova Watch Corp.; Woodside (NY)

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 83917

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1U4 1U5 3V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 1.5 & 67.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Adventurer 220 Series - Bulova Watch Corp.; Woodside

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

• Bulova model 220 Series is a battery operated portable AM receiver.

  Models 220, 230, 236 and 239 are different only for the color.

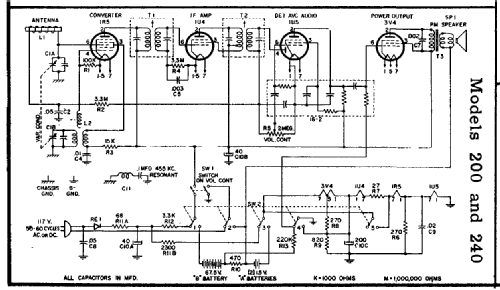

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 18, 1958

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 372 Folder 2 dated 9-57)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
