Deluxe Lyric Table Radio 320 Series

Bulova Watch Corp.; Woodside (NY)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Bulova Watch Corp.; Woodside (NY)

Year
1957

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
83934

Schematics

Deluxe Lyric Table Radio 320 Series; Bulova Watch Corp.; (ID = 2431785) Radio — Bulova Watch Corp.; Deluxe Lyric Table Radio 320 Series (3)

Deluxe Lyric Table Radio 320 Series; Bulova Watch Corp.; (ID = 2431786) Radio — Bulova Watch Corp.; Deluxe Lyric Table Radio 320 Series (3)

Deluxe Lyric Table Radio 320 Series; Bulova Watch Corp.; (ID = 2431787) Radio — Bulova Watch Corp.; Deluxe Lyric Table Radio 320 Series (3)

Deluxe Lyric Table Radio 320 Series; Bulova Watch Corp.; (ID = 2431788) Radio — Bulova Watch Corp.; Deluxe Lyric Table Radio 320 Series (3)

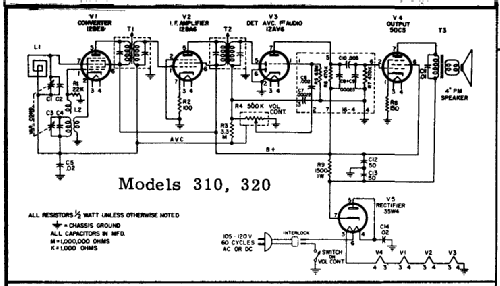

Deluxe Lyric Table Radio 320 Series; Bulova Watch Corp.; (ID = 137118) Radio — Bulova Watch Corp.; Deluxe Lyric Table Radio 320 Series (3)

Deluxe Lyric Table Radio 320 Series; Bulova Watch Corp.; (ID = 553345) Radio — Bulova Watch Corp.; Deluxe Lyric Table Radio 320 Series (3)

Deluxe Lyric Table Radio 320 Series; Bulova Watch Corp.; (ID = 553346) Radio — Bulova Watch Corp.; Deluxe Lyric Table Radio 320 Series (3)

Deluxe Lyric Table Radio 320 Series; Bulova Watch Corp.; (ID = 553347) Radio — Bulova Watch Corp.; Deluxe Lyric Table Radio 320 Series (3)

Deluxe Lyric Table Radio 320 Series; Bulova Watch Corp.; (ID = 553348) Radio — Bulova Watch Corp.; Deluxe Lyric Table Radio 320 Series (3)

Deluxe Lyric Table Radio 320 Series; Bulova Watch Corp.; (ID = 3062061) Radio — Bulova Watch Corp.; Deluxe Lyric Table Radio 320 Series (3)

Deluxe Lyric Table Radio 320 Series; Bulova Watch Corp.; (ID = 2690986) Radio — Bulova Watch Corp.; Deluxe Lyric Table Radio 320 Series (2)
ebay.it_185087904737 seller 4922angelo

Deluxe Lyric Table Radio 320 Series; Bulova Watch Corp.; (ID = 2690987) Radio — Bulova Watch Corp.; Deluxe Lyric Table Radio 320 Series (2)
ebay.it_185087904737 seller 4922angelo

Deluxe Lyric Table Radio 320 Series; Bulova Watch Corp.; (ID = 2690988) Radio — Bulova Watch Corp.; Deluxe Lyric Table Radio 320 Series (2)
ebay.it_185087904737 seller 4922angelo

Deluxe Lyric Table Radio 320 Series; Bulova Watch Corp.; (ID = 2690989) Radio — Bulova Watch Corp.; Deluxe Lyric Table Radio 320 Series (2)
from my collection of pictures

Deluxe Lyric Table Radio 320 Series; Bulova Watch Corp.; (ID = 2431784) Radio — Bulova Watch Corp.; Deluxe Lyric Table Radio 320 Series (2)

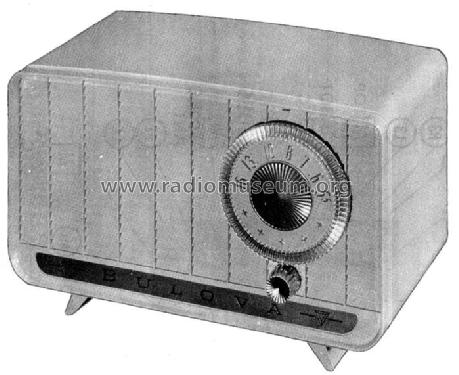

Picture from service manual.

Deluxe Lyric Table Radio 320 Series; Bulova Watch Corp.; (ID = 553344) Radio — Bulova Watch Corp.; Deluxe Lyric Table Radio 320 Series (2)

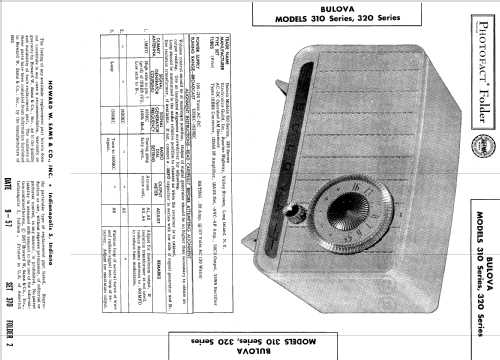

Sams Photofact Folders

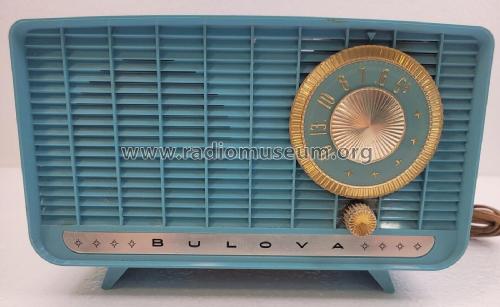

Deluxe Lyric Table Radio 320 Series; Bulova Watch Corp.; (ID = 2899394) Radio — Bulova Watch Corp.; Deluxe Lyric Table Radio 320 Series (2)
eBay item number:334769460689

Deluxe Lyric Table Radio 320 Series; Bulova Watch Corp.; (ID = 2899395) Radio — Bulova Watch Corp.; Deluxe Lyric Table Radio 320 Series (2)
eBay item number:334769460689

Deluxe Lyric Table Radio 320 Series; Bulova Watch Corp.; (ID = 2899396) Radio — Bulova Watch Corp.; Deluxe Lyric Table Radio 320 Series (2)
eBay item number:334769460689

Deluxe Lyric Table Radio 320 Series; Bulova Watch Corp.; (ID = 2899397) Radio — Bulova Watch Corp.; Deluxe Lyric Table Radio 320 Series (2)
eBay item number:334769460689

Deluxe Lyric Table Radio 320 Series; Bulova Watch Corp.; (ID = 2899398) Radio — Bulova Watch Corp.; Deluxe Lyric Table Radio 320 Series (2)
eBay item number:334769460689

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
12BE6 12BA6 12AV6 50C5 35W4

Main principle
Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

Tuned circuits
6 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
AC/DC-set / 117V = 110 -120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Deluxe Lyric Table Radio 320 Series - Bulova Watch Corp.; Woodside

Shape
Tablemodel without push buttons, Mantel/Midget/Compact up to 14

Notes
The Bulova Model 320 Series are AC/DC Operated 5 Tube AM Receiver.

Circuit diagram reference
Beitman Radio Diagrams Vol. 18, 1958

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 370 Folder 2 dated 9-57)

Author
Model page created by Egon Penker. See "Data change" for further contributors.
