- Country
- United States of America (USA)
- Manufacturer / Brand
- Bulova Watch Corp.; Woodside (NY)
- Year
- 1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 145067

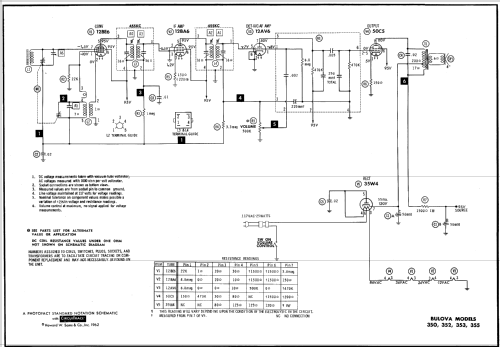

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- from Radiomuseum.org
- Model: 353 - Bulova Watch Corp.; Woodside
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
- The Bulova Model 353 is an AC/DC Operated 5 Tube AM Receiver.
- Literature/Schematics (1)

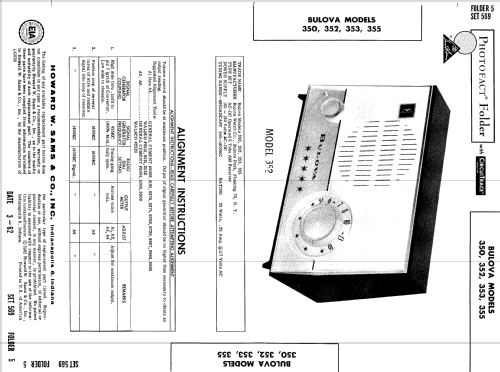

- Photofact Folder, Howard W. SAMS (Date 3-62, Set 569, Folder 5)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
