Jove Crystal Detector Holder List No. 8854

Bunnell & Co., J.H.; Kings Park, NY

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Bunnell & Co., J.H.; Kings Park, NY

Year
1919–1922

Category
Radio part (not a module)

Radiomuseum.org ID
197010

Schematics

Jove Crystal Detector Holder List No. 8854; Bunnell & Co., J.H.; (ID = 1775615) Radio part — Bunnell & Co., J.H.; Jove Crystal Detector Holder List No. 8854 (1)

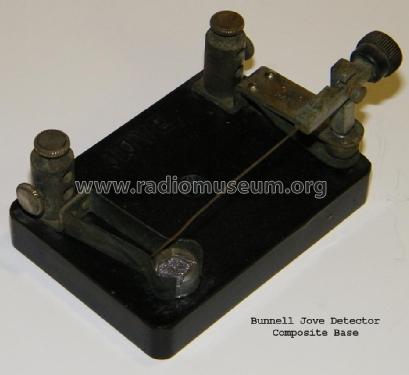

Jove Crystal Detector Holder

Jove Crystal Detector Holder List No. 8854; Bunnell & Co., J.H.; (ID = 1036827) Radio part — Bunnell & Co., J.H.; Jove Crystal Detector Holder List No. 8854 (2)
Bunnell Catalog No. 41 Nov. 1st, 1919

Jove Crystal Detector Holder List No. 8854; Bunnell & Co., J.H.; (ID = 992679) Radio part — Bunnell & Co., J.H.; Jove Crystal Detector Holder List No. 8854 (2)
Bunnell Catalog No. 41 Nov. 1st, 1919

Jove Crystal Detector Holder List No. 8854; Bunnell & Co., J.H.; (ID = 1036828) Radio part — Bunnell & Co., J.H.; Jove Crystal Detector Holder List No. 8854 (2)
Ebay user arnews 320735848645

Jove Crystal Detector Holder List No. 8854; Bunnell & Co., J.H.; (ID = 1036829) Radio part — Bunnell & Co., J.H.; Jove Crystal Detector Holder List No. 8854 (2)
Ebay user arnews 320735848645

Jove Crystal Detector Holder List No. 8854; Bunnell & Co., J.H.; (ID = 1036830) Radio part — Bunnell & Co., J.H.; Jove Crystal Detector Holder List No. 8854 (2)
Ebay user arnews 320735848645

Jove Crystal Detector Holder List No. 8854; Bunnell & Co., J.H.; (ID = 1775616) Radio part — Bunnell & Co., J.H.; Jove Crystal Detector Holder List No. 8854 (1)
Jove Crystal Detector Holder

Jove Crystal Detector Holder List No. 8854; Bunnell & Co., J.H.; (ID = 1775617) Radio part — Bunnell & Co., J.H.; Jove Crystal Detector Holder List No. 8854 (1)
Jove Crystal Detector Holder

Jove Crystal Detector Holder List No. 8854; Bunnell & Co., J.H.; (ID = 1775618) Radio part — Bunnell & Co., J.H.; Jove Crystal Detector Holder List No. 8854 (1)

Jove Crystal Detector Holder List No. 8854; Bunnell & Co., J.H.; (ID = 1775639) Radio part — Bunnell & Co., J.H.; Jove Crystal Detector Holder List No. 8854 (1)
Jove Crystal Detector Holder

Jove Crystal Detector Holder List No. 8854; Bunnell & Co., J.H.; (ID = 1785095) Radio part — Bunnell & Co., J.H.; Jove Crystal Detector Holder List No. 8854 (2)
Ad in QST 12-1915

Jove Crystal Detector Holder List No. 8854; Bunnell & Co., J.H.; (ID = 2071709) Radio part — Bunnell & Co., J.H.; Jove Crystal Detector Holder List No. 8854 (1)
Bunnell JOVE Crystal Detector front view

Jove Crystal Detector Holder List No. 8854; Bunnell & Co., J.H.; (ID = 2071710) Radio part — Bunnell & Co., J.H.; Jove Crystal Detector Holder List No. 8854 (1)
Bunnell JOVE Crystal Detector LHS view

Jove Crystal Detector Holder List No. 8854; Bunnell & Co., J.H.; (ID = 2071711) Radio part — Bunnell & Co., J.H.; Jove Crystal Detector Holder List No. 8854 (1)
Bunnell JOVE Crystal Detector rear view

Jove Crystal Detector Holder List No. 8854; Bunnell & Co., J.H.; (ID = 2071712) Radio part — Bunnell & Co., J.H.; Jove Crystal Detector Holder List No. 8854 (1)

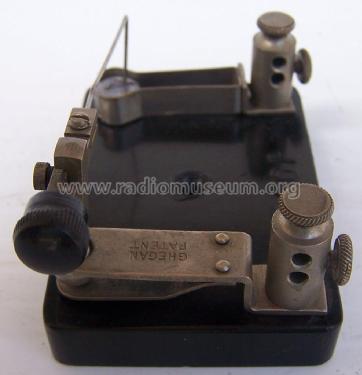

Bunnell JOVE Crystal Detector RHS view

Jove Crystal Detector Holder List No. 8854; Bunnell & Co., J.H.; (ID = 2071713) Radio part — Bunnell & Co., J.H.; Jove Crystal Detector Holder List No. 8854 (1)
Bunnell JOVE Crystal Detector top view

Technical Specifications

Main principle
Crystal or Solid State Detector

Wave bands
- without

Power type and voltage
No Power needed

Loudspeaker
- - No sound reproduction output.

Material
Bakelite case

from Radiomuseum.org
Model: Jove Crystal Detector Holder List No. 8854 - Bunnell & Co., J.H.; Kings

Shape
Tablemodel, with any shape - general.

Dimensions (WHD)
3.25 x 0 x 2.25 inch / 83 x 0 x 57 mm

Notes
Listed in the Nov. 1st 1919 Wireless Catalog for the Bunnell Company.

The new "Jove" No. 8854 Crystal Detector Holder now came with a composite base.

The earlier Jove No. 8804 Crystal Detector had a porcelain base.

Price in first year of sale
2.00 $

Source of data
- - Manufacturers Literature

Literature/Schematics (1)
Bunnell Catalog No. 41 Nov. 1st, 1919

Literature/Schematics (2)
QST December 1915

Author
Model page created by Alan Larsen. See "Data change" for further contributors.
