Premier Receiving Transformer List No. 8812 (Navy Type)

Bunnell & Co., J.H.; Kings Park, NY

Data
Forum
Pictures
Collections

  • Year
  • 1919
  • Category
  • Radio module pre 1926 (not a part, not a key)
  • Radiomuseum.org ID
  • 196991

 Technical Specifications

  • Main principle
  • Tuner pre 1926 (not a wave trap)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Premier Receiving Transformer List No. 8812 - Bunnell & Co., J.H.; Kings
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • Nov. 1st 1919 Wireless Catalog for the Bunnell Company. The Premier (Navy Type) Receiving Transformer for wave lengths up to 3,600 meters. 15 large and 6 small primary taps and 11 secondary taps.
  • Net weight (2.2 lb = 1 kg)
  • 8 lb (8 lb 0 oz) / 3.632 kg
  • Price in first year of sale
  • 20.00 $
  • Source of data
  • - - Manufacturers Literature
  • Literature/Schematics (1)
  • Bunnell Catalog No. 41 Nov. 1st, 1919
  • Author
  • Model page created by Alan Larsen. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model Premier Receiving Transformer is part of the collections of the following members.

 Forum

Forum contributions about this model: Bunnell & Co., J.H.;: Premier Receiving Transformer List No. 8812

Threads: 1 | Posts: 1

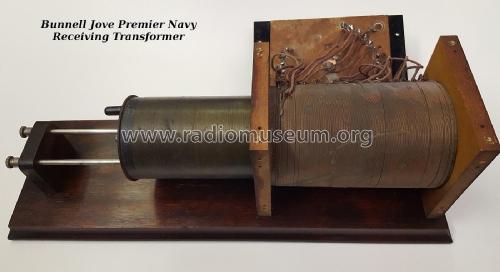

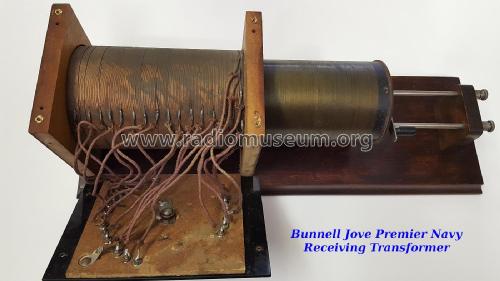

The Bunnell Jove Premier Navy Type loose coupler was built by the J. F. Arnold company for the Bunnell Company. The Premier Coupler was identical to the J. F. Arnold Navy Type Coupler Model No. 5.



Alan Larsen, 03.Nov.17
