Butoba TS71
Butoba (Marke/Brand)
- Country
- Germany
- Manufacturer / Brand
- Butoba (Marke/Brand)
- Year
- 1958–1961
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 22033
-
- alternative name: Burger Söhne, Joseph
TS 71 with rear covers removed.

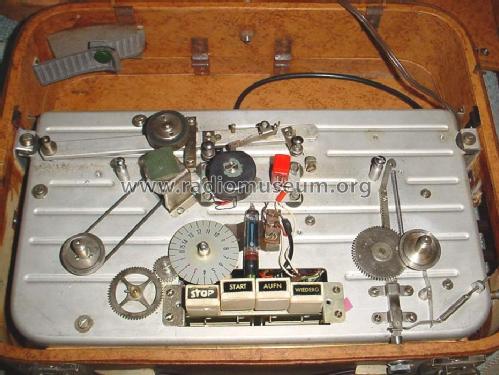

TS 71 with top cover off.
- Number of Tubes
- 1
- Valves / Tubes
- DM71
- Number of Transistors
- 8
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Dry Batteries / 4 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Butoba TS71 - Butoba Marke/Brand
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 380 x 300 x 130 mm / 15 x 11.8 x 5.1 inch
- Notes
- Vollspur; 19 cm/s. Spulen-Ø 13 cm. Antrieb durch Federmotor.
- Net weight (2.2 lb = 1 kg)
- 9.5 kg / 20 lb 14.8 oz (20.925 lb)
- Price in first year of sale
- 995.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1958/59 / Radiokatalog Band 2, Ernst Erb
