- Country
- Great Britain (UK)
- Manufacturer / Brand
- Burndept Ltd. London
- Year
- 1935 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 103212
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 130 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries / 2 & 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

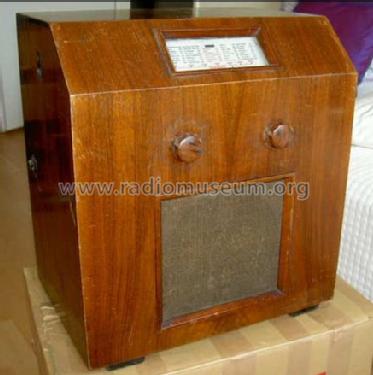

- Model: 218 - Burndept Ltd. London
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
- Transportable battery superhet.
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (100)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
