• Country
• Great Britain (UK)

• Manufacturer / Brand
• Burndept Ltd. London

• Year
• 1929

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 163782

• Number of Tubes
• 4

• Valves / Tubes
• 220SG PM1LF PM1LF PM2

• Main principle
• TRF with regeneration; 2 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 2 & 90 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) generic.

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

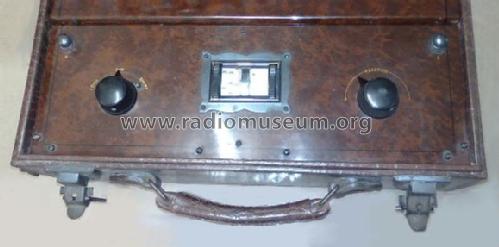

• Model: Super Screened Portable - Burndept Ltd. London

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 15 x 8.5 x 15 inch / 381 x 216 x 381 mm

• Notes
• Slightly different case version of the "New Screened Portable", a modernised and cheaper version of the 1928 model.

• Author
• Model page created by Frank Cuffe. See "Data change" for further contributors.
