• Country
• Great Britain (UK)

• Manufacturer / Brand
• Bush Radio; London

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 93748

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH42 EBF80 EL41 EZ40

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 1 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 100-120; 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

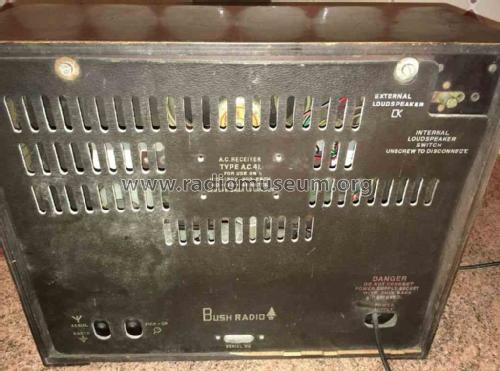

• Model: AC41 - Bush Radio; London

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 408 x 340 x 195 mm / 16.1 x 13.4 x 7.7 inch

• Notes
• Original price £16.4s.9d + tax.

• Price in first year of sale
• 16.00 GBP

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1186)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
