AM/FM Portable Radio VTR273
Bush Radio; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Bush Radio; London
- Year
- 1973
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 330978
- Number of Transistors
- 11
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / C: 6 x 1.5 / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: AM/FM Portable Radio VTR273 - Bush Radio; London
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 13.875 x 7 x 3 inch / 352 x 178 x 76 mm
- Notes
-

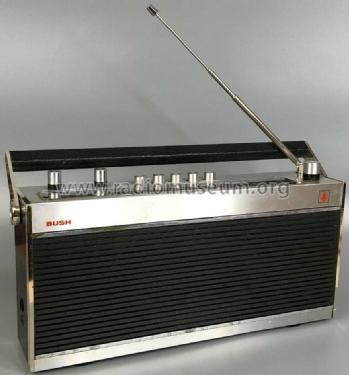

A battery operated 3 band AM/FM portable transistor radio. With a telescopic aerial, AFC, and sockets for earphone/tape recorder, car radio aerial and 9V DC PSU (optional PU90). 6 x 4 inch elliptical loudspeaker.

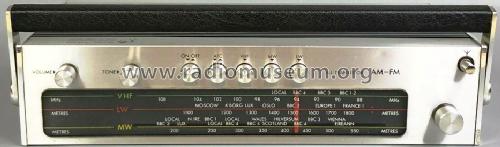

Wavebands.
L.W. band : 280 kHz to 158 kHz (1070 to 1900 metres).
M.W. band : 1605 kHz to 525 kHz (187 to 570 metres).
V.H.F. band : 87.5 MHz to 108 MHz.Similar to the Murphy B944 AM/FM Portable Radio, and the earlier Bush VTR173 and Murphy B844 AM/FM Portable Radios which do not have a 9V PSU socket.
- Literature/Schematics (1)
- - - Manufacturers Literature (Bush Murphy Service Information Bush VTR273 Murphy B944 dated 1/11/73)
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
