• Country
• Great Britain (UK)

• Manufacturer / Brand
• Bush Radio Ltd.; london

• Year
• 1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 103221

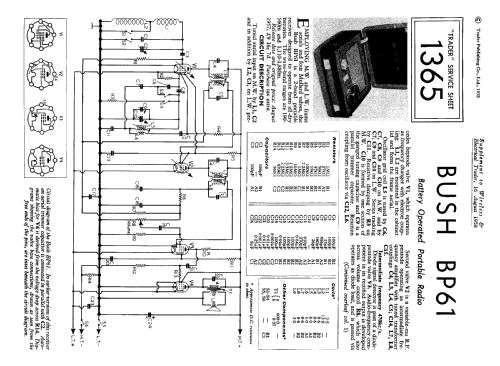

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• DK96 DF96 DAF96 DL96

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 1.5 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

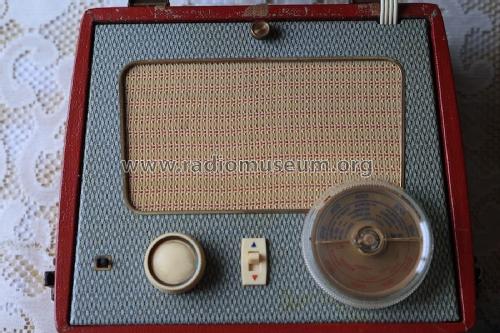

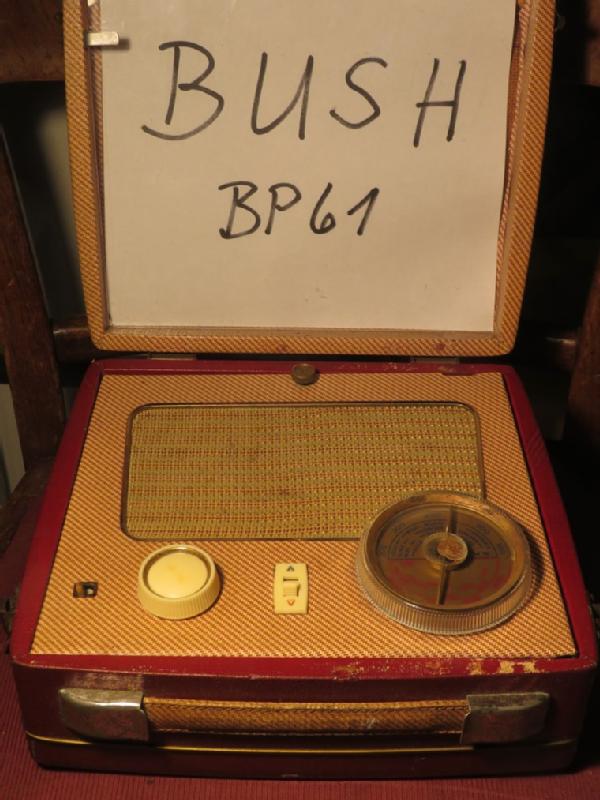

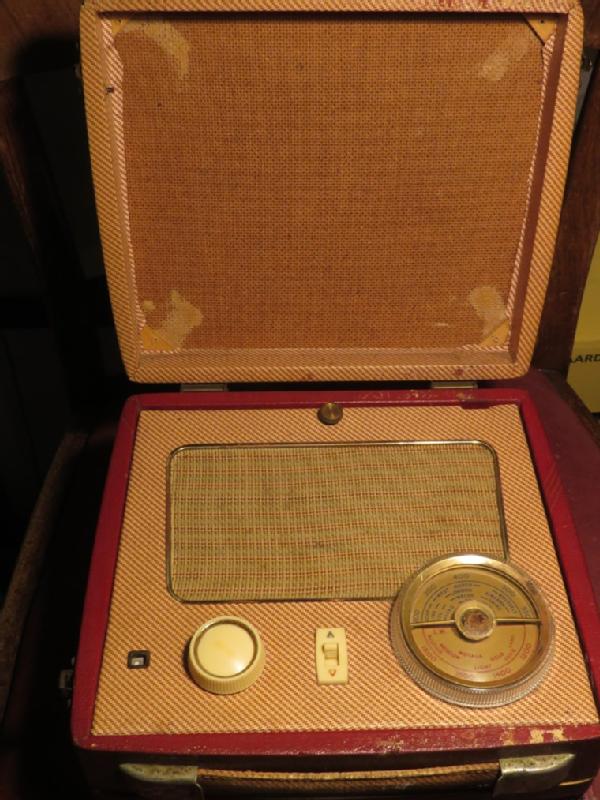

• Model: BP61 - Bush Radio Ltd.; london

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 9 x 9.75 x 4 inch / 229 x 248 x 102 mm

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.

• Other Models

• Here you find 400 models, 333 with images and 239 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
